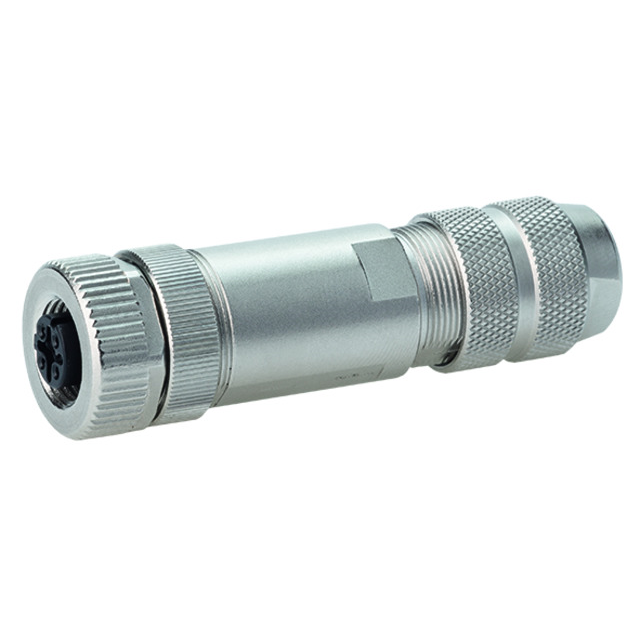

CU-CN M12D-CS SCT FIELD C5 D5-8

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN M12D-CS SCT FIELD C5 D5-8

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100007542	J80029 Series

Applications	Industrial	Industrial
Backshell Material, Plating	Brass and Zinc Die Cast, Nickel	Brass and Zinc Die Cast, Nickel, Brass
Cable Opening [Max] [custom]	8 mm	8 mm
Cable Opening [Max] [custom]	0.315 in	0.315 in
Cable Opening [Min] [custom]	5 mm	5 mm
Cable Opening [Min] [custom]	0.197 in	0.197 in
Color	Silver	Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass, Bronze
Current Rating (Amps)	4 A	0.5 - 4 A
Features	Coupling Nut, Backshell	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB	UL94 HB, UL94 V-0
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
Number of Positions	4	4 - 8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	D	D, X
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Zinc Die Cast	Brass and Zinc Die Cast, Brass
Shell Size - Insert	M12-4	M12-4, M12-8
Shielding	Unshielded	Unshielded
Termination	Screw	Screw
Voltage Rating	250 VDC	50 - 250 VDC

CU-CN M12D-CS SCT FIELD C5 D5-8

Part	Shell Finish	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Termination	Mounting Type	Contact Material	Shielding	Current Rating (Amps)	Shell Material	Insert Material	Voltage Rating	Backshell Material, Plating	Primary Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Color	Features	Ingress Protection	Contact Finish - Mating	Connector Type	Material Flammability Rating	Number of Positions	Orientation	Mounting Feature
Telegartner Inc 100007542	Nickel	5 mm	0.197 in	8 mm	0.315 in	Screw	Free Hanging (In-Line)	Brass	Unshielded	4 A	Brass and Zinc Die Cast	Nylon, Polyamide (PA)	250 VDC	Brass and Zinc Die Cast, Nickel	Metal	Industrial	85 °C	-40 °C	M12-4	Silver	Backshell, Coupling Nut	IP67 - Dust Tight, Waterproof	Gold	Female Sockets, Plug	UL94 HB	4	D
Telegartner Inc 100007538	Nickel						Free Hanging (In-Line), Panel Mount	Bronze	Unshielded	0.5 A	Brass	Nylon, Polyamide (PA)	50 VAC, 60 VDC	Brass, Nickel	Metal	Industrial	85 °C	-40 °C	M12-8	Silver	Backshell	IP67 - Dust Tight, Waterproof	Gold	Female Sockets, Plug	UL94 V-0	8	X	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Data) Position Circular Connector Plug, Female Sockets Screw
