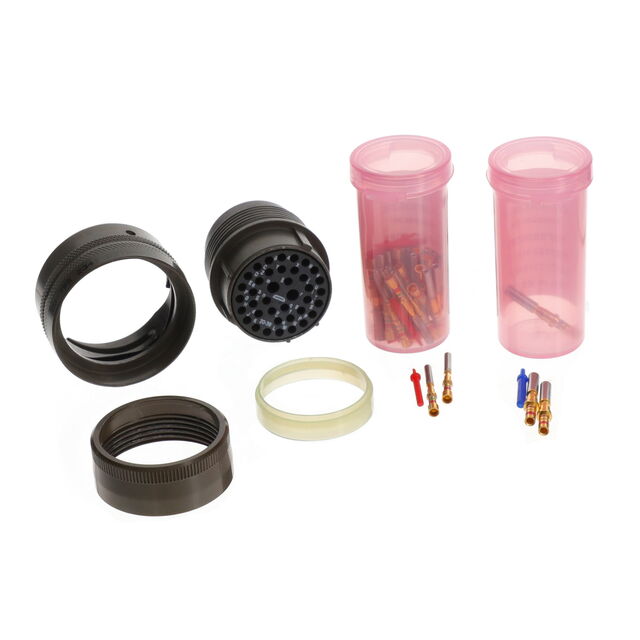

MS3126E20-39S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126E20-39S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126E20-39S | MS3126E20 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins, Plug Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 20 |
| Contact Type | - | Crimp |
| Current Rating (Amps) | 13 A, 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 39 | 39 - 41 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | W, X, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 39 | 39 - 41 |
| Shell Size - Insert [Min] | 20 | 20 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Female Sockets |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 245.37 | |
| 10 | $ 227.38 | |||
| 25 | $ 219.20 | |||
MS3126E20 Series
MIL-26482 MS/PT/CMB PLUG
| Part | Termination | Qualification | Mounting Type | Shell Finish | Backshell Material, Plating | Current Rating (Amps) | Color | Primary Material | Orientation | Voltage Rating | Applications | Fastening Type | Ingress Protection | Shell Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Grade | Contact Material | Insert Material | Connector Type | Contact Finish - Mating | Features | Shielding | Contact Type | Note | Type | Housing Color | Contact Size | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126E20-41SW | Crimp | MIL-DTL-26482 Series I | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium | 7.5 A | Olive Drab | Metal | W | 600 VAC | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Environment Resistant | Aluminum | 41 | -55 °C | 125 °C | 20 | 41 | Military | Copper Alloy | Neoprene | Female Sockets, Plug | Gold | Backshell, Coupling Nut | Unshielded | ||||||
Amphenol Industrial Operations MS3126E20-16P(LC) | ||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E20-41PX | Crimp | MIL-DTL-26482 Series I | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium | 7.5 A | Olive Drab | Metal | X | 600 VAC | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Environment Resistant | Aluminum | 41 | -55 °C | 125 °C | 20 | 41 | Military | Copper Alloy | Neoprene | Male Pins, Plug | Gold | Backshell | Unshielded | ||||||
Amphenol Industrial Operations MS3126E20-39S | Crimp | MIL-DTL-26482 Series I | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium | 7.5 A, 13 A | Olive Drab | Metal | N | 600 VAC | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Environment Resistant | Aluminum | 39 | -55 °C | 125 °C | 20 | 39 | Military | Copper Alloy | Neoprene | Female Sockets, Plug | Gold | Backshell, Coupling Nut | Unshielded | ||||||
Amphenol Industrial Operations MS3126E20-39P(LC) | ||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E20-41SW-LC | MIL-DTL-26482 Series I | Free Hanging (In-Line) | Chromate over Cadmium | W | Bayonet Lock | Environment Resistant | Aluminum | 41 | -55 °C | 125 °C | 20 | 41 | Military | Neoprene | Plug Housing | Backshell, Coupling Nut | Unshielded | Crimp | Contacts Not Included | For Female Sockets | Olive Drab | 20 | Circular |
Description
General part information
MS3126E20 Series
39 Position Circular Connector Plug, Female Sockets Crimp
