134-1001-001
ActiveCinch Connectivity Solutions Johnson

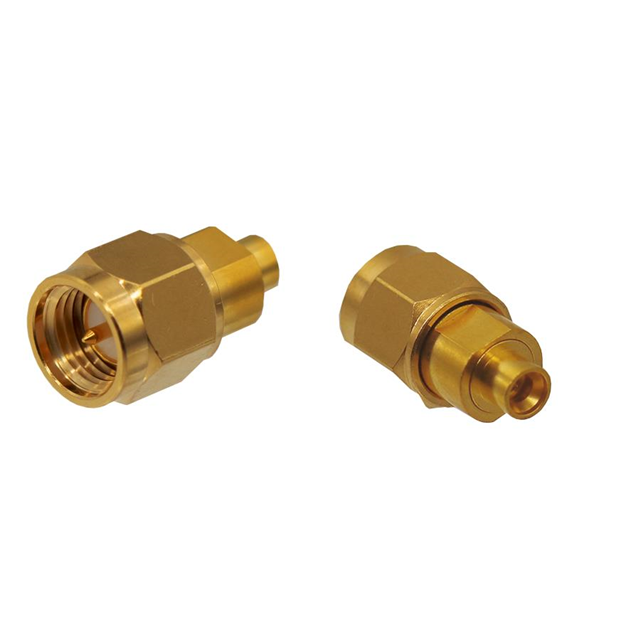

ADAPTER, SMA PLUG TO SMPM PLUG
Deep-Dive with AI
Search across all available documentation for this part.
134-1001-001
ActiveCinch Connectivity Solutions Johnson
ADAPTER, SMA PLUG TO SMPM PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 134-1001-001 |
|---|---|
| Adapter Series | SMA to SMPM |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Beryllium Copper, Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | Male Pin, SMPM Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500, 100 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 32.70 | |
| 10 | $ 28.63 | |||
| 25 | $ 27.40 | |||
| 50 | $ 26.51 | |||
| 100 | $ 25.63 | |||
| 250 | $ 24.21 | |||
Description
General part information
134-1001-001
Adapter Coaxial Connector SMA Plug, Male Pin To SMPM Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
