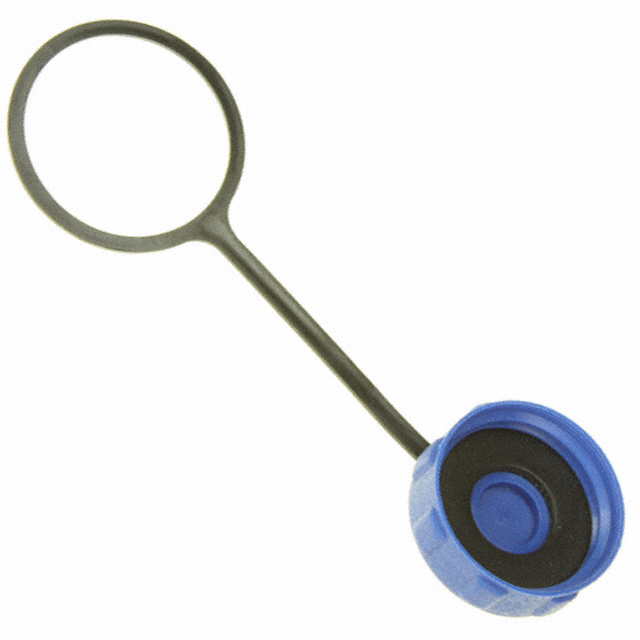

| Accessory Type | Cap (Cover), Sealing | Cap (Cover), Sealing, Cable Gland, Seal, Wire Seal, Collet, Adapter, Housing, Cable Support, Insulating, Boot |
| Applications | - | General Purpose |
| Body Finish | - | Gold |
| Body Material | - | Polyester, Polyethylene Terephthalate (PET), Brass |
| Cable Exit | - | 180 ° |
| Cable Group | - | RG-174 |
| Cable Opening | - | 8 mm |
| Cable Opening | - | 6 mm |
| Cable Opening | - | 0.315 in |
| Cable Opening | - | 0.236 in |
| Cable Opening | - | 0.236 in |
| Cable Opening | - | 6 mm |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Blue | Blue, Multiple, Black, Gray, White, Yellow, Silver |
| Connector Style | - | SMB |
| Connector Type | - | Female Sockets, Insert, Header, Insert Shell, Male Pin, Jack, Receptacle, Male Pins, Plug, Receptacle, Female Sockets |
| Contact Finish | - | Nickel, Gold, Tin |
| Contact Finish - Mating | - | Nickel, Gold, Silver |
| Contact Finish - Post | - | Gold |
| Contact Finish Thickness - Mating | - | 30 Áin |
| Contact Finish Thickness - Mating | - | 0.76 Ám |
| Contact Material | - | Brass, Copper Alloy |
| Contact Shape | - | Circular, Square |
| Contact Termination | - | Crimp |
| Contact Type | - | Socket, Pin, Crimp, Male Pin |
| Current Rating (Amps) | - | 3 - 10 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Friction Lock, Push-Pull |
| Features | Waterproof, Dust Tight | Dust Tight, Waterproof, Contains Strap, Contains Strap with Ring, Insert Only, Requires Shell, AWG Dependent on Series, Metal Strap, Clamping Ring, Sealing Gland, Backshell, IP68, Water Resistant, Sealed, Coupling Nut |
| For Use With/Related Products | Buccaneer® 400 Connectors | PXP4011, PXP4040, PXP4010, PX0100 Series, Buccaneer® 400 Connectors, PXA911/xx/x, PX0911/xx/x, Buccaneer®, Standard Front Panel Mount Connectors, SMB Plugs, Buccaneer® 900 Series, Standard Buccaneer® Connectors, Buccaneer®, Mini Flex and Flex In-Line Connectors, Buccaneer®, Standard Flex and In-Line Flex Connectors, PX0851, PX0846, PX0921/xx/x, PXA921/xx/x, PXP6011, PX0931/xx/x, PX0941/xx/x, PXM7012 Panel Mount Connectors, PXP6012, PXM6012, Mini Buccaneer® Connectors, PXP4043, PXP4013, PXM7010 Flex Connectors, PXM6010, PXP6010 |
| For Use With/Related Products | - | 5 - 7 mm |
| For Use With/Related Products | - | 7 - 9 mm |
| Frequency - Max | - | 4 GHz |
| Housing Color | - | Black |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Sealing Gland, 1 Backshell, 1 Cable Nut, 1 Clamping Ring, Gasket, Connector, Washer, Nut |
| Ingress Protection | - | IP68 - Dust Tight, Waterproof, IP67 - Dust Tight, Waterproof |
| Insert Material | - | Nylon, Polyamide (PA) |
| Insulation Color | - | White |
| Insulation Height | - | 6.35 mm |
| Insulation Height | - | 0.25 in |
| Material | Polyamide (PA), Nylon | Polycarbonate (PC), Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon, Polyimide, Silicone, Glass Filled, Polyamide (PA), Nylon, Thermoplastic, Metal |
| Material Flammability Rating | - | UL94 V-0, UL94 HB |
| Mounting Feature | - | Bulkhead - Rear Side Nut, Flange |
| Mounting Type | - | Through Hole, Right Angle, Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount |
| Note | - | Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included; Insert Not Included |
| Number of Ports | - | 1 |
| Number of Positions | - | 3 - 4 |
| Number of Positions | - | 1 |
| Number of Positions | - | 2 - 3 |
| Number of Positions | - | 2 - 12 |
| Number of Positions | - | 1 |
| Number of Positions | - | 2 |
| Number of Positions Loaded | - | All |
| Number of Rows | - | 1 |
| Operating Temperature | - | 60 - 80 °C |
| Operating Temperature | - | -20 - 0 C |
| Orientation | - | Keyed |
| Outside Cable Diameter (Max) | - | 0.472 - 0.787 " |
| Outside Cable Diameter (Max) | - | 12 - 20 mm |
| Outside Cable Diameter (Min) | - | 6 - 14 mm |
| Outside Cable Diameter (Min) | - | 0.236 - 0.551 in |
| Overall Contact Length | - | 14.22 mm |
| Overall Contact Length | - | 0.56 in |
| Pin or Socket | - | Socket, Pin |
| Pitch - Mating | - | 0.1 in |
| Pitch - Mating | - | 2.54 mm |
| Primary Material | - | Plastic |
| Shell Material | - | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | - | Unshielded |
| Shrouding | - | Shrouded - 1 Wall |
| Style | - | Board to Cable/Wire |
| Termination | - | Screw, Solder, Quick Connect |
| Termination | - | 0.189 - 4.8 " |
| Termination Finish | - | Copper Alloy |
| Thread Size | - | M20 |
| Type | - | Power, Machined, For Male Pins, Cable Gland, Backshell, Stamped |
| Voltage Rating | - | 50 - 250 VAC |
| Wire Gauge | - | 12 - 20 AWG |
| Wire Gauge | - | 14 - 24 AWG |
| Wire Gauge | - | 13.5 AWG |
| Wire Gauge or Range - AWG | - | 18 - 28 AWG |
| Wire Gauge or Range - AWG | - | 16 - 24 AWG |
