Technical Specifications
Parameters and characteristics for this part
| Specification | 11_TNC-50-4-52/133_NE |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 15 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.06 | |
| 10 | $ 29.83 | |||
| 25 | $ 28.54 | |||
| 50 | $ 27.62 | |||
| 100 | $ 26.70 | |||
| 250 | $ 25.22 | |||
Description
General part information

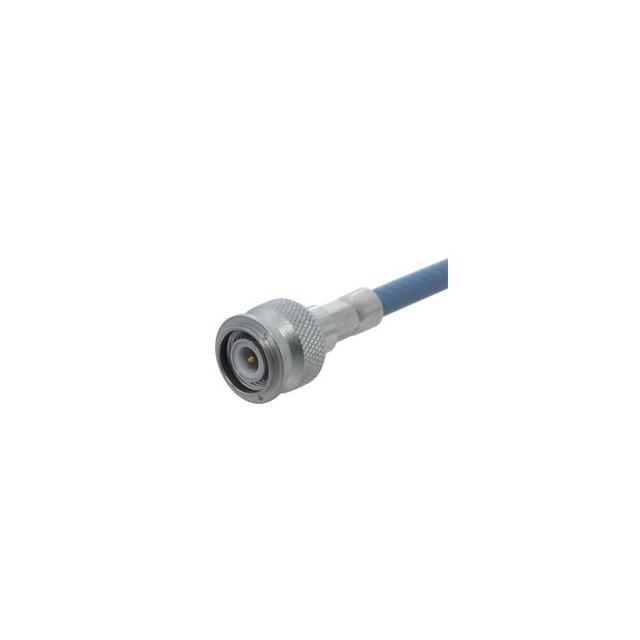

11_TNC-50-4-52/133_NE
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
