Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 189.02 | |
| 10 | $ 173.90 | |||
| 50 | $ 160.67 | |||
General part information

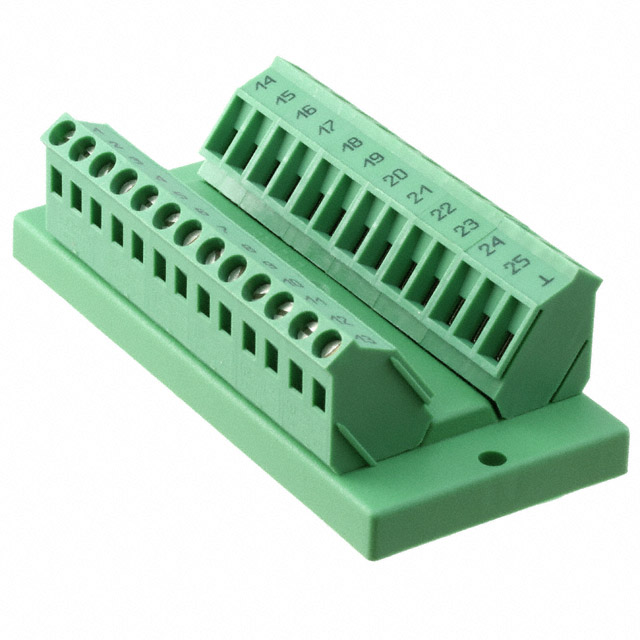

Adapter Terminal Blocks, Screw Connection, 25 Pos, 2 Rows To D-Sub, Male Pins, 25 Pos, 2 Rows
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2280310 | DFLK-D25 Series |
|---|---|---|
| Convert From (Adapter End) | Screw Connection, 25 Pos, 2 Rows, Terminal Blocks | Screw Connection, 25 Pos, 2 Rows, Terminal Blocks, Screwless Connection |
| Convert From (Adapter End) | - | 2 - 25 Rows |
| Convert To (Adapter End) | 2 Rows, D-Sub, Male Pins, 25 Pos | D-Sub, Female Sockets, 2 Rows, Male Pins, 25 Pos |
| Convert To (Adapter End) | - | 2 - 25 Rows |
| Mounting Type | Feed Through, Panel Mount | Feed Through, Panel Mount |
| Wire Gauge [Max] | 24 AWG | 24 - 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
INTERFACE MODULE, DFLK-D25 SUB/B ROHS COMPLIANT: YES
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Mounting Type | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|
Phoenix Contact 2280323 | 12 AWG | 24 AWG | 2 Rows, 25 positions | D-Sub, Female Sockets | 2 Rows, 25 Pos, Screw Connection, Terminal Blocks | Feed Through, Panel Mount | |
Phoenix Contact 2903055 | 12 AWG | 24 AWG | 2 Rows, 25 Pos, D-Sub, Male Pins | Screwless Connection, Terminal Blocks | Feed Through, Panel Mount | 2 Rows, 25 Pos | |
Phoenix Contact 2280310 | 12 AWG | 24 AWG | 2 Rows, 25 Pos, D-Sub, Male Pins | 2 Rows, 25 Pos, Screw Connection, Terminal Blocks | Feed Through, Panel Mount | ||
Phoenix Contact 2903067 | 12 AWG | 30 AWG | 2 Rows, 25 positions | D-Sub, Female Sockets | Screwless Connection, Terminal Blocks | Feed Through, Panel Mount | 2 Rows, 25 Pos |
