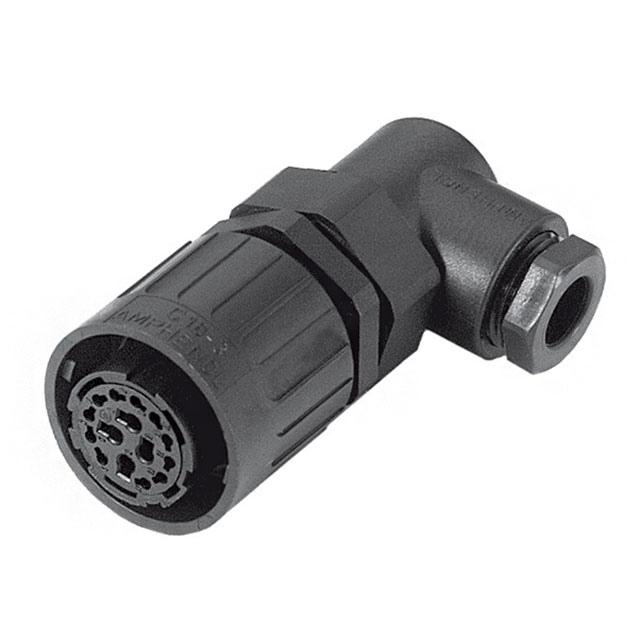

C01610F0140031

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 15POS R/A

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 15POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	C01610F0140031

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm, 2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Size - Insert	Type	Number of Positions	Material Flammability Rating	Fastening Type	Mounting Type	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Contact Shape	Features	Contact Type	Housing Color	Note	Orientation	Connector Type	Ingress Protection	Contact Size
Amphenol Tuchel Industrial C01610F0140031	1	For Female Sockets	15	UL94 V-0	Bayonet Lock	Free Hanging (In-Line) Right Angle	Polyamide (PA66) Nylon 6/6	125 °C	-40 °C	Unshielded	Circular	Backshell Coupling Nut	Crimp	Black	Contacts Not Included	N	Plug Housing	IP65 - Dust Tight Water Resistant	1.5 mm 2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 (14 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
