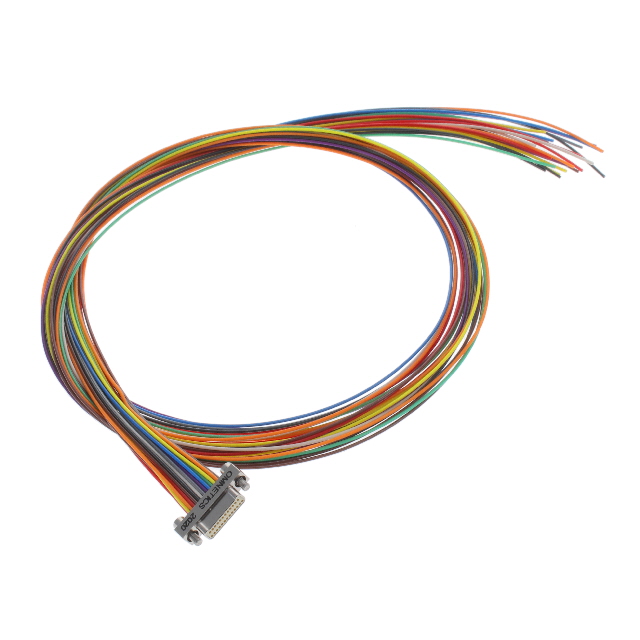

A28000-025

Active

Omnetics

CABLE ASSY D-NANO-D 25P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-NANO-D 25P 457.2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CABLE ASSY D-NANO-D 37P 457.2MM

Part	Length [x]	Length [x]	Contact Finish	Number of Positions	1st Connector	Color	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Type
Omnetics A28000-037	457.2 mm	1.5 ft	Gold	37	Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D
Omnetics A28000-085	457.2 mm	1.5 ft	Gold	85	Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D
Omnetics A28000-021	457.2 mm	1.5 ft	Gold	21	Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D
Omnetics A28000-031	457.2 mm	1.5 ft	Gold	31	Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D
Omnetics A28000-065	457.2 mm	1.5 ft	Gold	65	Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D
Omnetics A28000-051	457.2 mm	1.5 ft	Gold	51	Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D
Omnetics A28000-025	457.2 mm	1.5 ft	Gold		Plug, Male Pins	Individual, Multiple	Individual Wire Leads	50 µin	1.27 µm	Unshielded	D-Type, Nano-D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Nano-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources
