PE3254-12
ActivePasternack

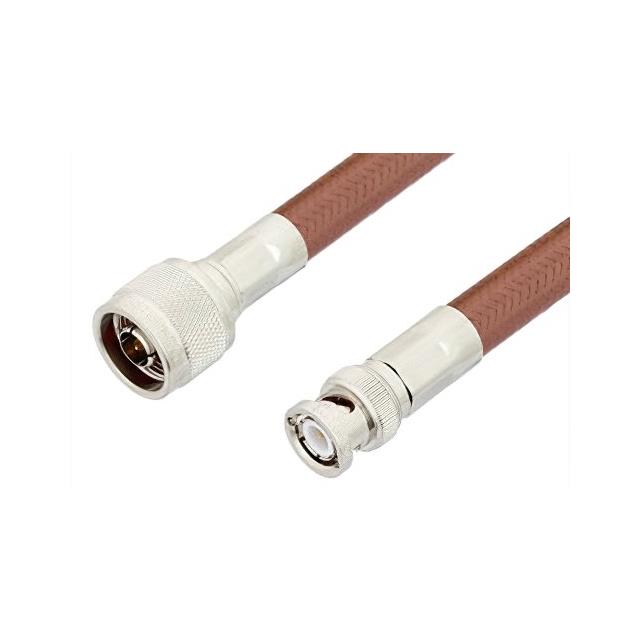

N MALE TO BNC MALE CABLE 12 INCH
PE3254-12
ActivePasternack
N MALE TO BNC MALE CABLE 12 INCH
Description
General part information
PE3254-12
Cable Assembly Coaxial BNC to N-Type RG-393 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3254-12 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 393, RG |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, BNC |
