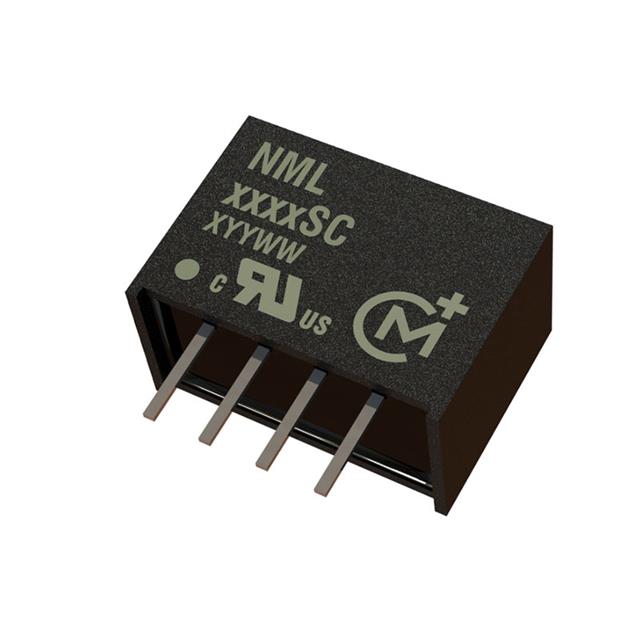

NML1205SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
NML1205SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NML1205SC | NML12 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 133 - 400 mA |
| Efficiency | - | 81 - 85 % |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 4-SIP Module |
| Power (Watts) | - | 2 W |
| Size / Dimension | - | 9.9 mm |
| Size / Dimension | - | 7.6 mm |
| Size / Dimension | - | 0.3 " |
| Size / Dimension | - | 0.55 in |
| Size / Dimension | - | 0.39 in |
| Size / Dimension | - | 14 mm |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 13.2 V |
| Voltage - Input (Min) | - | 10.8 V |
| Voltage - Isolation | - | 1000 V |
| Voltage - Output 1 | - | 5 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NML12 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V
| Part | Package / Case | Voltage - Input (Max) [Max] | Applications | Voltage - Isolation | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Number of Outputs | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NML1205SC | ||||||||||||||||||||
Murata Power Solutions Inc. NML1205SC | ||||||||||||||||||||
Murata Power Solutions Inc. NML1212SC | ||||||||||||||||||||
Murata Power Solutions Inc. NML1205SC | 4-SIP Module | 13.2 V | ITE (Commercial) | 1000 V | Isolated Module | 9.9 mm | 7.6 mm | 0.3 " | 0.55 in | 0.39 in | 14 mm | 2 W | 81 % | 85 °C | -40 °C | 5 V | 10.8 V | 400 mA | 1 | Through Hole |
Murata Power Solutions Inc. NML1212SC | ||||||||||||||||||||
Murata Power Solutions Inc. NML1212SC | 4-SIP Module | 13.2 V | ITE (Commercial) | 1000 V | Isolated Module | 9.9 mm | 7.6 mm | 0.3 " | 0.55 in | 0.39 in | 14 mm | 2 W | 85 % | 85 °C | -40 °C | 12 V | 10.8 V | 167 mA | 1 | Through Hole |
Murata Power Solutions Inc. NML1209SC | 4-SIP Module | 13.2 V | ITE (Commercial) | 1000 V | Isolated Module | 9.9 mm | 7.6 mm | 0.3 " | 0.55 in | 0.39 in | 14 mm | 2 W | 84 % | 85 °C | -40 °C | 9 V | 10.8 V | 222 mA | 1 | Through Hole |
Murata Power Solutions Inc. NML1215SC | 4-SIP Module | 13.2 V | ITE (Commercial) | 1000 V | Isolated Module | 9.9 mm | 7.6 mm | 0.3 " | 0.55 in | 0.39 in | 14 mm | 2 W | 85 % | 85 °C | -40 °C | 15 V | 10.8 V | 133 mA | 1 | Through Hole |
Description
General part information
NML12 Series
The NML1205SC is an isolated single-output DC/DC Converter particularly suited to isolating and converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from -40°C and full 2W output at 85°C. Pin compatibility with the NME and LME ensures ease of upgradeability.
