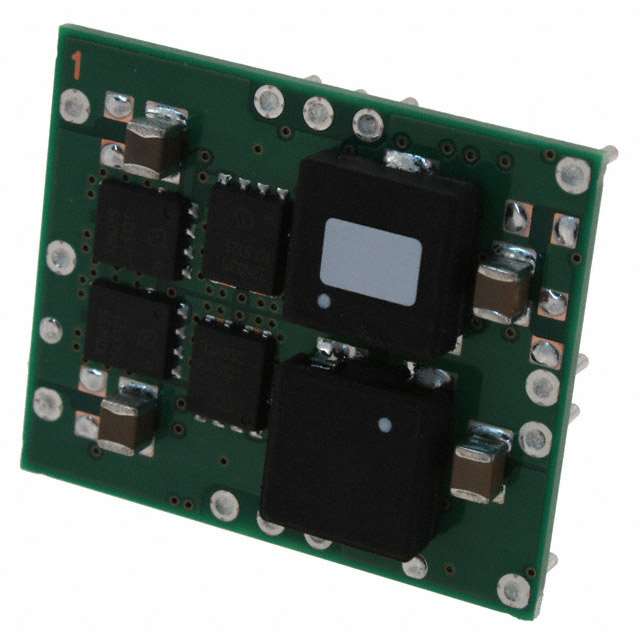

PTH12030WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 1.2-5.5V 143W
Deep-Dive with AI
Search across all available documentation for this part.
PTH12030WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 1.2-5.5V 143W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH12030WAD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 26 A |
| Efficiency | 94.5 % |
| Features | SCP, OTP, Remote On/Off, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 13-DIP Module |
| Power (Watts) | 143 W |
| Size / Dimension [x] | 34.8 mm |
| Size / Dimension [x] | 1.37 in |
| Size / Dimension [y] | 1.12 in |
| Size / Dimension [y] | 28.5 mm |
| Size / Dimension [z] | 9 mm |
| Size / Dimension [z] | 0.35 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.8 V |
| Voltage - Input (Min) [Min] | 10.2 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 42.25 | |
| 5 | $ 41.92 | |||
| 16 | $ 41.59 | |||
| 32 | $ 40.27 | |||
| 48 | $ 38.28 | |||
| 80 | $ 35.64 | |||
| 240 | $ 35.12 | |||
Description
General part information
PTH12030 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 26A 10.2V - 13.8V Input
Documents
Technical documentation and resources
No documents available
