PAG.1B.303.CLAD76Z
ActiveMilspecwest, LLC

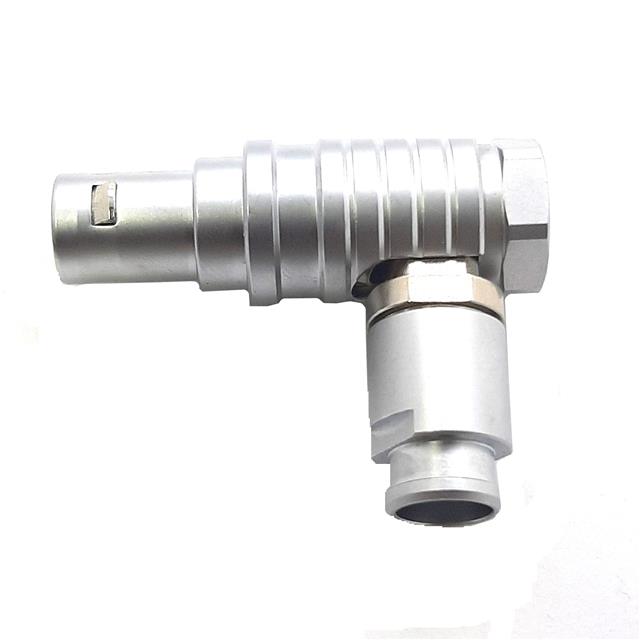

PUSH-PULL PLUG, 90 DEGREE SHELL
PAG.1B.303.CLAD76Z
ActiveMilspecwest, LLC
PUSH-PULL PLUG, 90 DEGREE SHELL
Description
General part information
PAG.1B.303.CLAD76Z
3 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PAG.1B.303.CLAD76Z |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Material | Bronze |
| Fastening Type | Push-Pull |
| Features | Self Locking |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | G |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Termination | Solder |
