W3228
ActivePulse Electronics

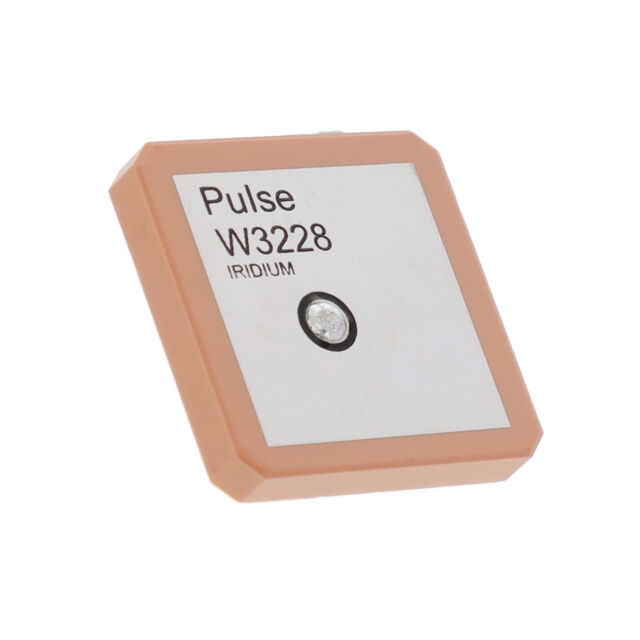

ANT CER IRIDIUM 25X25X4MM PIN
W3228
ActivePulse Electronics
ANT CER IRIDIUM 25X25X4MM PIN
Description
General part information
W3228
RF ANTENNA General Purpose Ceramic Patch Pin Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | W3228 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | General Purpose |
| Frequency (Center/Band) | 1.621 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.625 GHz |
| Frequency Range (Min) | 1.617 GHz |
| Gain | 4 dBi |
| Height (Max) | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -15 dB |
| Termination | Pin |
