H3A-MAG
ActiveTE Connectivity AMP Connectors

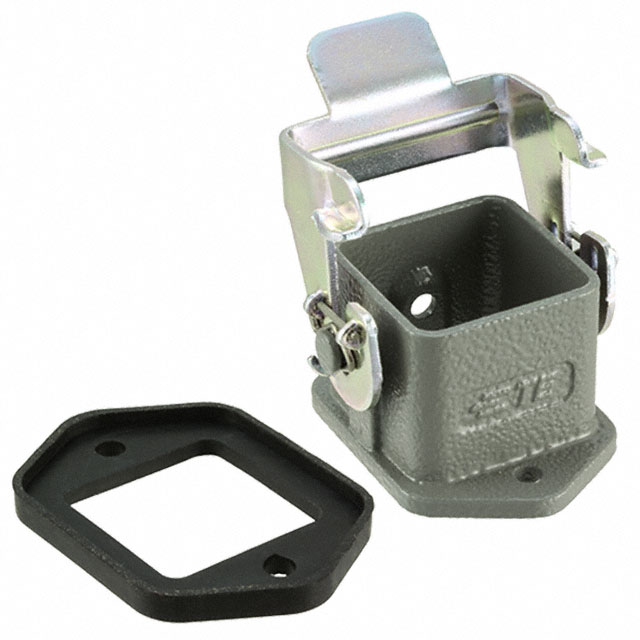

CONN BASE BTM ENTRY SZ3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H3A-MAG
ActiveTE Connectivity AMP Connectors
CONN BASE BTM ENTRY SZ3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H3A-MAG | H3A Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount, Hood |
| Housing Color | - | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Zinc Alloy | Zinc Alloy |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 3 A | 3 A |
| Size / Dimension | - | 55.78 mm |
| Size / Dimension | - | 26.8 mm |
| Size / Dimension [x] | 1.189 " | 1.055 - 1.189 " |
| Size / Dimension [x] | 30.2 mm | 26.8 - 30.2 mm |
| Size / Dimension [y] | 1.661 " | 1.055 - 1.661 " |
| Size / Dimension [y] | 42.2 mm | 42.2 mm |
| Size / Dimension [z] | 0.945 " | 0.945 - 2.196 " |
| Size / Dimension [z] | 24 mm | 24 mm |
| Style | Bottom Entry | Bottom Entry, Top Entry |
| Thread Size | - | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.15 | |
| 10 | $ 6.23 | |||
| 30 | $ 6.07 | |||
| 50 | $ 5.90 | |||
| 100 | $ 5.54 | |||
| 250 | $ 5.51 | |||
| 500 | $ 5.18 | |||
| 1000 | $ 4.62 | |||
H3A Series
CONN BASE BTM ENTRY SZ3A
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Connector Type | Housing Finish | Lock Location | Size | Style | Ingress Protection | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Thread Size | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H3A-MAG | 1.661 " | 1.189 " | 42.2 mm | 0.945 " | 30.2 mm | 24 mm | Base - Panel Mount | Powder Coated | Locking Clip (1) on Base Bottom | 3 A | Bottom Entry | IP65 - Dust Tight, Water Resistant | Zinc Alloy | 125 °C | -40 °C | ||||
TE Connectivity AMP Connectors H3A-MTG-M20 | 1.055 " | 1.055 " | 2.196 " | 26.8 mm | Hood | Powder Coated | Locking Clip (1) on Base Bottom | 3 A | Top Entry | IP65 - Dust Tight, Water Resistant | Zinc Alloy | 125 °C | -40 °C | Gray | M20 | 55.78 mm | 26.8 mm |
Description
General part information
H3A Series
Base - Panel Mount Connector Bottom Entry 3A IP65 - Dust Tight, Water Resistant
