ADM00764
ObsoleteMicrochip Technology

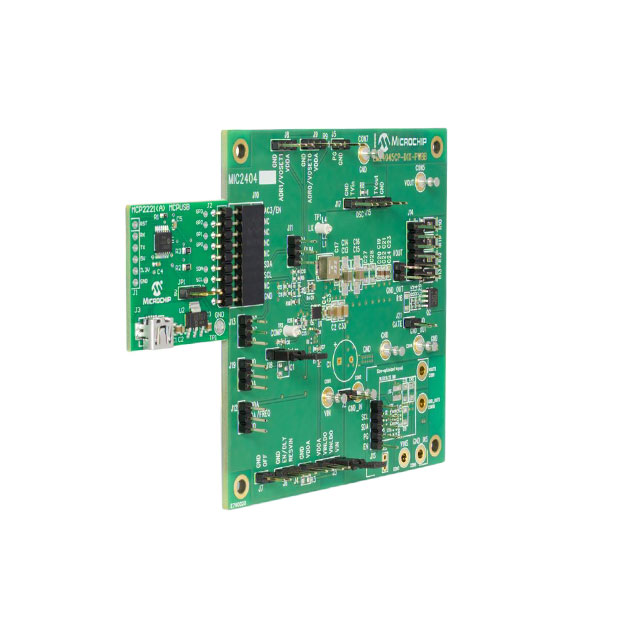

MIC24045 EVALUATION KIT
ADM00764
ObsoleteMicrochip Technology
MIC24045 EVALUATION KIT
Description
General part information
ADM00764
MIC2404x - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | ADM00764 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board, Cable |
| Current - Output | 5 A |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s), Cable(s) |
| Total Output Count | 1 |
| Utilized IC / Part | MIC2404x |
| Voltage - Input (Maximum) | 19 V |
| Voltage - Input (Minimum) | 4.5 V |
| Voltage - Output (Max) | 5.25 V |
| Voltage - Output (Min) | 0.64 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
