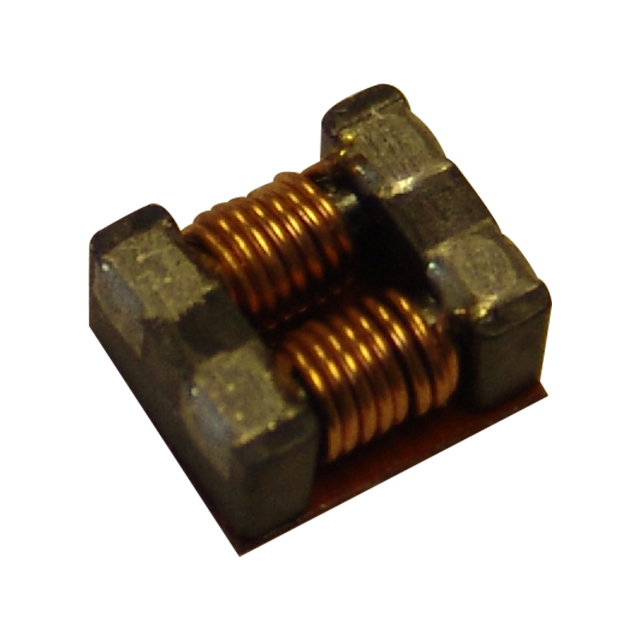

MCM-1513M-301
ActivePulse Electronics
CMC 13A 2LN 300 OHM SMD
MCM-1513M-301
ActivePulse Electronics
CMC 13A 2LN 300 OHM SMD
Description
General part information
MCM-1513M-301
2 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 13A DCR 4.7mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | MCM-1513M-301 |
|---|---|
| Current Rating (Max) | 13 A |
| DC Resistance (DCR) (Max) | 4.7 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.236 in |
| Impedance | 300 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.512 in |
| Voltage Rating - DC | 80 VDC |
