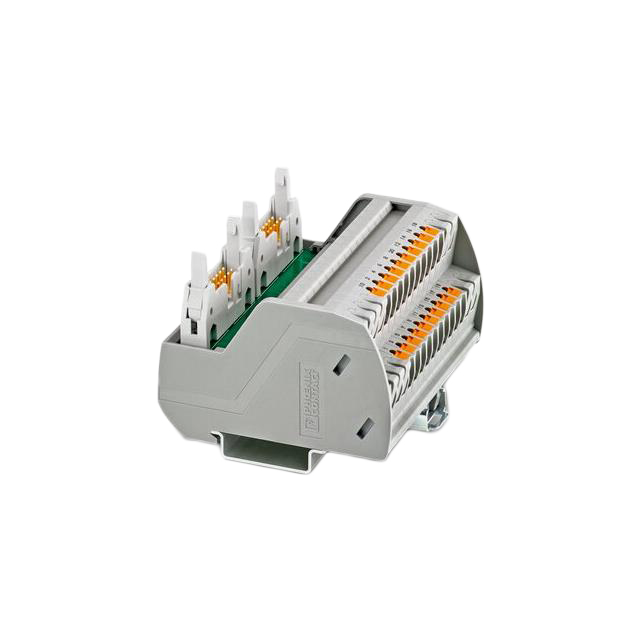

Specification	2904288

Control Side Cable Retainer Type	Latches
Control Side Connection Gender	Male
Control Side Connection Shape	Rectangular
Current Rating (Per Contact)	1 A
Length	3.248 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	14
Process Side Connection	Terminal Blocks, Spring Connection
Voltage - Rated	60 VDC
Voltage - Rated Configuration	DC
Width	2.839 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	12 AWG
