DE4FB
ActiveSwitchcraft Inc.

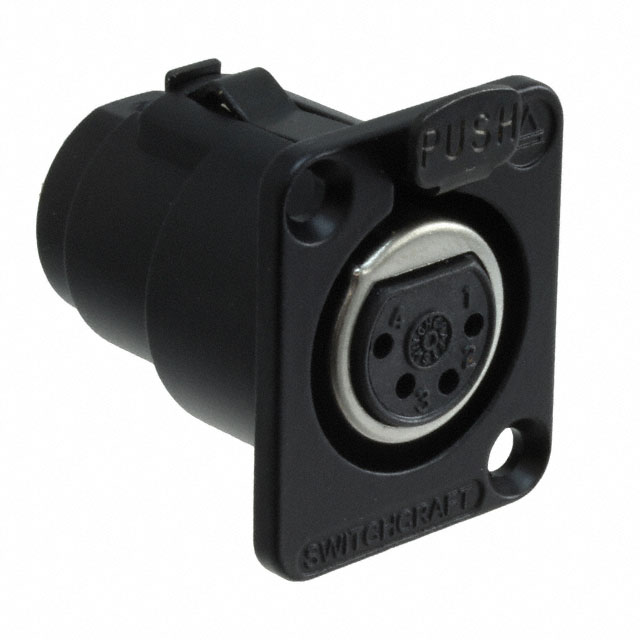

CONN PLUG FMALE XLR 4P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DE4FB
ActiveSwitchcraft Inc.
CONN PLUG FMALE XLR 4P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DE4FB | DE4F Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Black | Black, White |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Silver | Silver, Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Ground | Ground |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Flange | Flange |
| Number of Positions | 4 | 4 |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Stainless Steel | Stainless Steel |
| Shell Size - Insert | XLR | XLR |
DE4F Series
CONN PLUG FMALE XLR 4P SLDR CUP
| Part | Number of Positions | Shell Material | Insert Material | Contact Material | Primary Material | Shell Size - Insert | Applications | Contact Finish - Mating | Color | Orientation | Features | Mounting Feature | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. DE4FB | 4 | Stainless Steel | Thermoplastic | Copper Alloy | Metal | XLR | Audio, Instrumentation | Silver | Black | Keyed | Ground | Flange | Female Sockets, Plug | Latch Lock |
Switchcraft Inc. DE4FBAU | 4 | Stainless Steel | Thermoplastic | Copper Alloy | Metal | XLR | Audio, Instrumentation | Gold | Black | Keyed | Ground | Flange | Female Sockets, Plug | Latch Lock |
Switchcraft Inc. DE4FW | 4 | Stainless Steel | Thermoplastic | Copper Alloy | Metal | XLR | Audio, Instrumentation | Silver | White | Keyed | Ground | Flange | Female Sockets, Plug | Latch Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.85 | |
| 10 | $ 7.07 | |||
| 25 | $ 6.66 | |||
| 50 | $ 6.49 | |||
| 100 | $ 6.32 | |||
| 250 | $ 6.01 | |||
Description
General part information
DE4F Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
