SBSGC2000683MXT
ActiveKnowles Johanson Manufacturing
SURFACE MOUNT C AND PI FILTER
Deep-Dive with AI
Search across all available documentation for this part.
SBSGC2000683MXT
ActiveKnowles Johanson Manufacturing
SURFACE MOUNT C AND PI FILTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SBSGC2000683MXT |
|---|---|
| Capacitance | 0.068 µF |
| Current | 10 A |
| Height (Max) [Max] | 0.104 " |
| Height (Max) [Max] | 2.65 mm |
| Insertion Loss | 39 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [custom] | 1812 |
| Package / Case [custom] | 4532 Metric |
| Package / Case [custom] | 3 PC Pad |
| Size / Dimension [x] | 4.55 mm |
| Size / Dimension [x] | 0.179 in |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 5.14 | |
Description
General part information
SBSGC2000683MXT

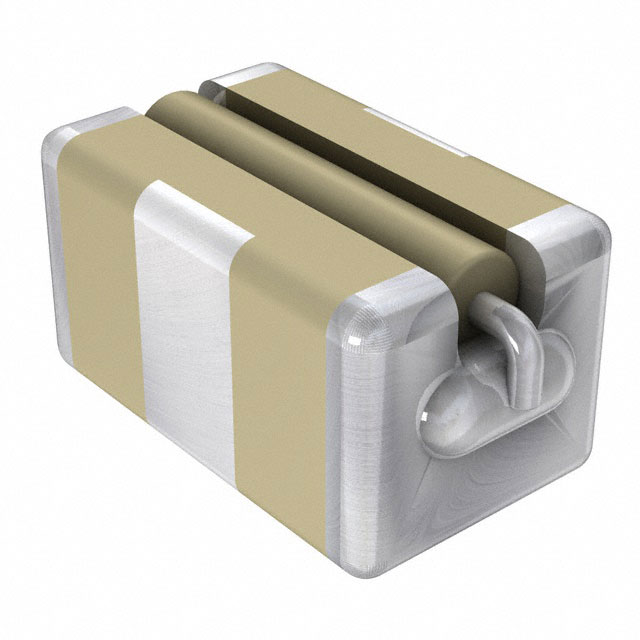

0.068 µF Feed Through Capacitor 200V 10 A 1812 (4532 Metric), 3 PC Pad
