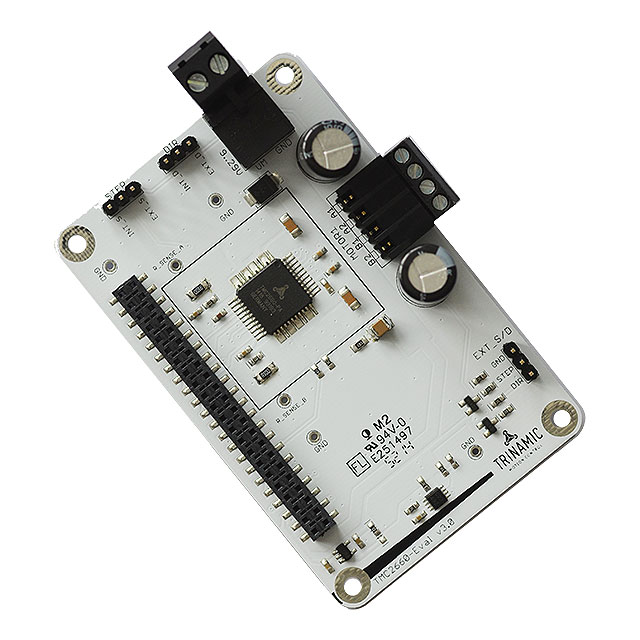

TMC2660-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC2660
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2660-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC2660
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2660-EVAL | TMC2660 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | - | Board(s) |
| Current - Output | - | 2.8 A |
| Embedded | False | False |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Step/Direction, SPI |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 44-LQFP |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 44-PQFP, 44-PQFP (10x10) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC2660 | TMC2660 |
| Voltage - Load | - | 9 V |
| Voltage - Load | - | 30 V |
| Voltage - Supply | - | 5 V |
| Voltage - Supply | - | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.81 | |
TMC2660 Series
IC MTR DRV BIPOLAR 3.3-5V 44PQFP
| Part | Mounting Type | Applications | Technology | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output | Supplier Device Package | Motor Type - Stepper | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Function | Operating Temperature [Min] | Operating Temperature [Max] | Step Resolution [Max] | Step Resolution [Min] | Primary Attributes | Secondary Attributes | Type | Utilized IC / Part | Supplied Contents | Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2660C-PA-T | Surface Mount | General Purpose | Power MOSFET | Half Bridge (4) | 5 V | 3.3 V | 2.8 A | 44-PQFP | Bipolar | 44-LQFP | 9 V | 30 V | SPI, Step/Direction | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 | |||||||
Analog Devices Inc./Maxim Integrated TMC2660C-PA | Surface Mount | General Purpose | Power MOSFET | Half Bridge (4) | 5 V | 3.3 V | 2.8 A | 44-PQFP | Bipolar | 44-LQFP | 9 V | 30 V | SPI, Step/Direction | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 | |||||||
Analog Devices Inc./Maxim Integrated TMC2660-BOB | Motors (Stepper) | SPI Interface(s) | Power Management | TMC2660 | Board(s) | Board(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2660-EVAL | Power Management | TMC2660 | Board(s) | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2660-PA-T | Surface Mount | General Purpose | Power MOSFET | Half Bridge (4) | 5 V | 3.3 V | 2.8 A | 44-PQFP (10x10) | Bipolar | 44-LQFP | 9 V | 30 V | SPI, Step/Direction | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 |
Description
General part information
TMC2660 Series
TMC2660 Motor Controller/Driver, Stepper Power Management Evaluation Board
