1898994
ActivePhoenix Contact
PCB CONNECTOR, DFK-MSTBA 2,5/ 3-GF-5,08 ROHS COMPLIANT: YES
1898994
ActivePhoenix Contact
PCB CONNECTOR, DFK-MSTBA 2,5/ 3-GF-5,08 ROHS COMPLIANT: YES
Description
General part information
1898994

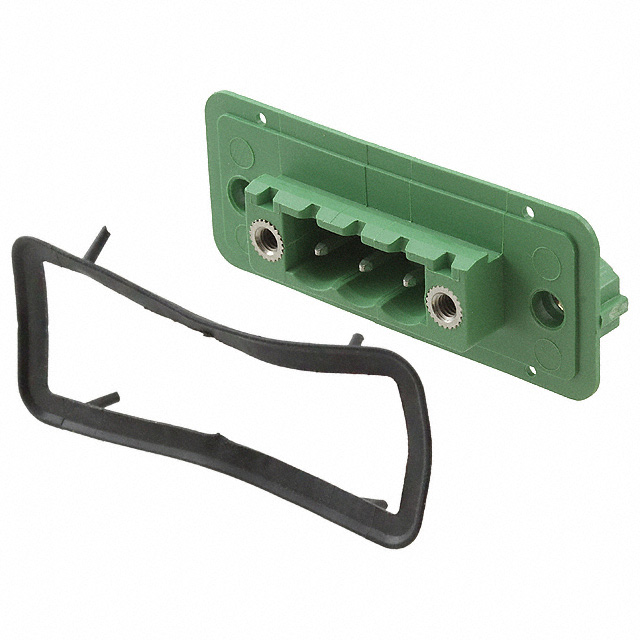

3 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1898994 |
|---|---|
| Color | Green |
| Current - UL | 10 A |
| Features | Threaded Mate Lock, Sealing Gasket |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Rear Flange |
| Pitch | 5.08 mm |
| Positions Per Level | 3 |
| Rear Panel Wire Connection | PCB Pins - Right Angle |
| Voltage - UL | 300 V |
| Width | 1.772 in |
