DPC817L-Y-TR
ActiveDiodes Inc
OPTOISOLATOR 5KV 1CH TRANS 4-SMD
DPC817L-Y-TR
ActiveDiodes Inc
OPTOISOLATOR 5KV 1CH TRANS 4-SMD
Description
General part information
DPC817L-Y-TR
OPTOISOLATOR 5KV 1CH TRANS 4-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | DPC817L-Y-TR |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) | 300 % |
| Current Transfer Ratio (Min) | 150 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor |

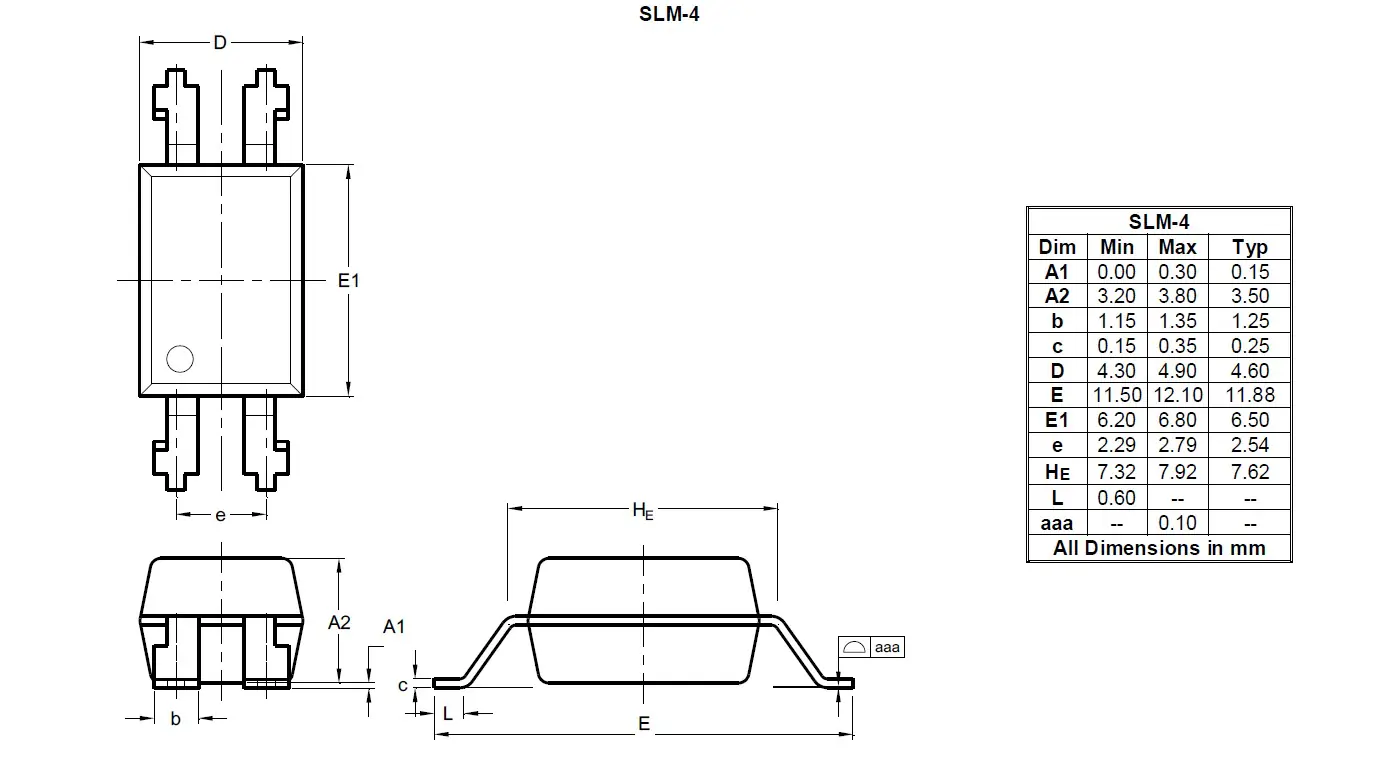

| Package / Case | 4-SMD, Gull Wing |
| Package Name | 4-SMD |
| Rise / Fall Time (Max) | 18 µs |
| Rise / Fall Time (Typ) | 18 µs |
| Vce Saturation (Max) | 200 mV |
| Voltage - Forward (Vf) (Typ) | 1.25 V |
| Voltage - Isolation | 5000 Vrms |
| Voltage - Output (Max) | 35 VDC |
