M3TTK-2618J
Active3M
IDC CABLE - MSD26K/MC26G/MSD26K
Deep-Dive with AI
Search across all available documentation for this part.
M3TTK-2618J
Active3M
IDC CABLE - MSD26K/MC26G/MSD26K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3TTK-2618J | M3TTK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | - | 1.52 - 508 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length | - | 1.67 - 5 ft |
| Length [x] | 457.2 mm | 1.02 - 914.4 mm |
| Length [x] | 1.5 ft | 1.5 - 3.34 ft |
| Number of Positions | 26 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3TTK Series
IDC CABLE - MSD30K/MC34M/MSD30K
| Part | Pitch - Connector | Pitch - Connector | Cable Termination | Contact Finish | Connector Type | Shielding | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch - Cable | Pitch - Cable | Features | Length [x] | Length [x] | Number of Positions | Number of Rows | Length | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | Multiple, Ribbon | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 3 ft | 914.4 mm | 30 | 2 | ||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 14 | 2 | 152.4 mm | 6 " | 0.5 ' | ||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | Multiple, Ribbon | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 10 | 2 | 152.4 mm | 6 " | 0.5 ' | |||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 1.5 ft | 457.2 mm | 30 | 2 | |||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 20 | 2 | 152.4 mm | 6 " | 0.5 ' | ||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | Multiple, Twisted Pair (Flat) | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 60 | 2 | 508 mm | 1.67 ft | ||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 10 | 2 | 152.4 mm | 6 " | 0.5 ' | ||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | Multiple, Ribbon | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 40 | 2 | 152.4 mm | 6 " | 0.5 ' | |||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | Multiple, Ribbon | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 1.5 ft | 457.2 mm | 34 | 2 | ||||||
0.1 in | 2.54 mm | IDC | Gold | Socket to Socket | Unshielded | Multiple, Ribbon | 0.76 Ám | 30 Áin | 0.05 " | 1.27 mm | Polarizing Key | 3 ft | 914.4 mm | 10 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.12 | |
| 10 | $ 13.94 | |||
| 25 | $ 12.61 | |||
| 50 | $ 11.72 | |||
| 100 | $ 10.90 | |||
| 250 | $ 9.94 | |||
| 500 | $ 9.29 | |||
| 1000 | $ 8.71 | |||
Description
General part information
M3TTK Series

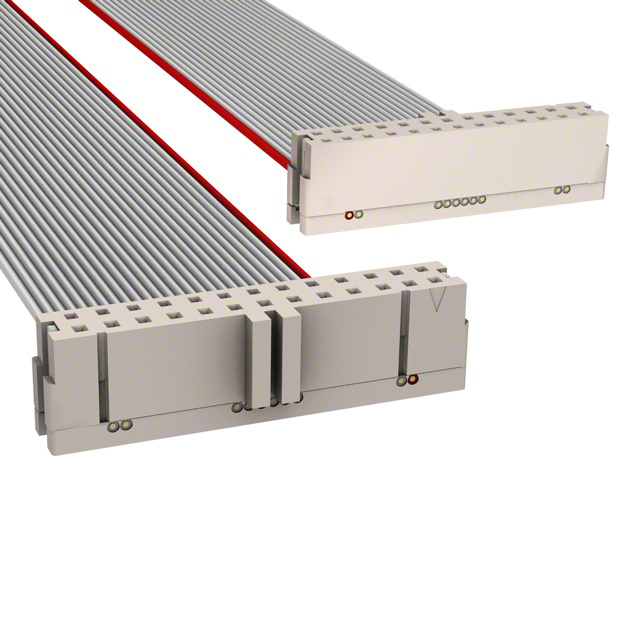

26 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
