KG16.5101.109

Active

SCHURTER Inc.

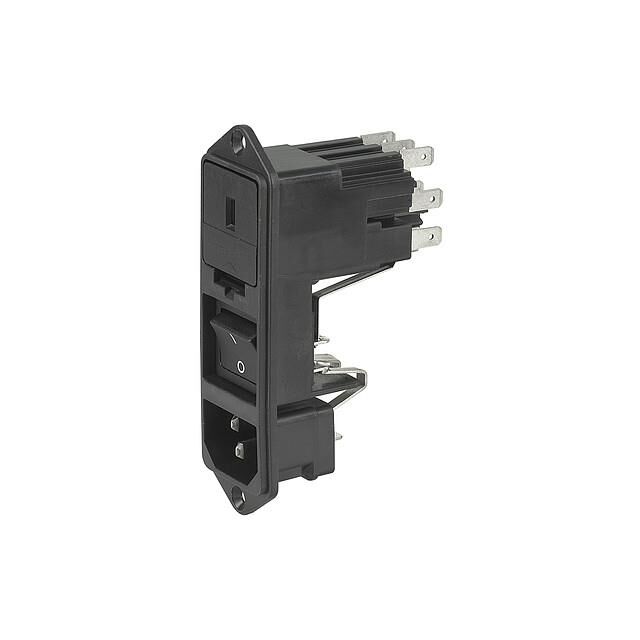

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KG16.5101.109	KG16.5101 Series

Accomodates a Fuse	True	True
Approval Agency	UL, ENEC, CSA	UL, ENEC, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	80 mm	80 mm
Panel Thickness	-	2 mm
Panel Thickness	-	0.079 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Panel Thickness [x]	2.5 mm	2.5 mm
Panel Thickness [x]	0.098 in	0.098 in
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Termination	Termination	Filter Type	Voltage Rating - Appliance Inlet	Features	Ingress Protection	Connector Type	Panel Thickness [x]	Panel Thickness [x]	Current Rating - Appliance Inlet	Switch Features	Connector Style	Approval Agency	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Panel Thickness	Panel Thickness	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. KG16.5101.109	UL94 V-0	0.189 ", 4.8 mm	Quick Connect	Unfiltered - Commercial	250 VAC	Voltage Selector	IP40	Receptacle, Male Blades - Module	2.5 mm	0.098 in	10 A	Switch On-Off	IEC 320-C14	CSA, ENEC, UL	Drawer Sold Separate	27.5 mm	80 mm	Panel Mount, Snap-In
SCHURTER Inc. KG16.5101.107	UL94 V-0	0.189 ", 4.8 mm	Quick Connect	Unfiltered - Commercial	250 VAC	Voltage Selector	IP40	Receptacle, Male Blades - Module			10 A	Switch On-Off	IEC 320-C14	CSA, ENEC, UL	Drawer Sold Separate	27.5 mm	80 mm	Panel Mount, Snap-In	2 mm	0.079 in
SCHURTER Inc. KG16.5101.105	UL94 V-0	0.189 ", 4.8 mm	Quick Connect	Unfiltered - Commercial	250 VAC	Voltage Selector	IP40	Receptacle, Male Blades - Module			10 A	Switch On-Off	IEC 320-C14	CSA, ENEC, UL	Drawer Sold Separate	27.5 mm	80 mm	Panel Mount, Snap-In			0.059 in	1.5 mm
SCHURTER Inc. KG16.5101.151	UL94 V-0	0.189 ", 4.8 mm	Quick Connect	Unfiltered - Commercial	250 VAC	Voltage Selector	IP40	Receptacle, Male Blades - Module			10 A	Switch On-Off	IEC 320-C14	CSA, ENEC, UL	Drawer Sold Separate	27.5 mm	80 mm	Flange, Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 25.09

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
