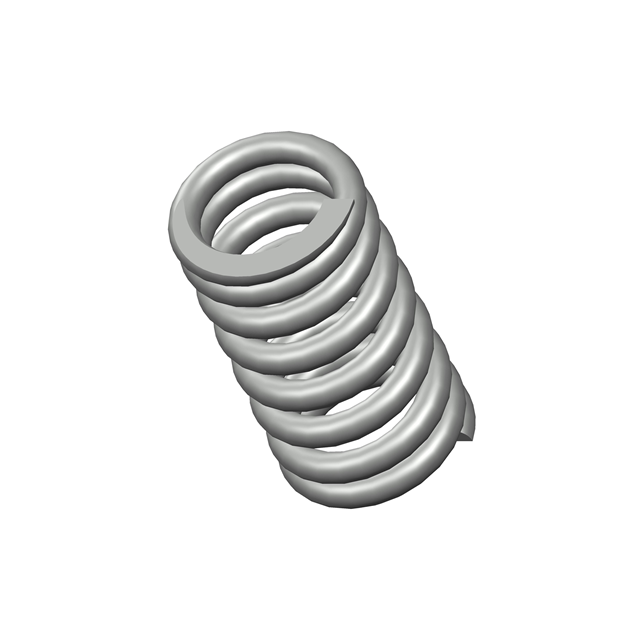

10991CS
ActiveCentury Spring Corp
COMP O= .781,L= 1.50,W= .125
10991CS
ActiveCentury Spring Corp
COMP O= .781,L= 1.50,W= .125
Description
General part information
10991CS
COMP O= .781,L= 1.50,W= .125
Technical Specifications
Parameters and characteristics for this part
| Specification | 10991CS |
|---|---|
| Diameter - Inside | 0.531 in |
| Diameter - Outside | 0.781 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 1.5 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 207 lbs/in |
| Type | Compression |
| Wire Diameter | 0.125 in |
