Connectors, Interconnects
2-917360-0
ActiveTE Connectivity Raychem Cable Protection

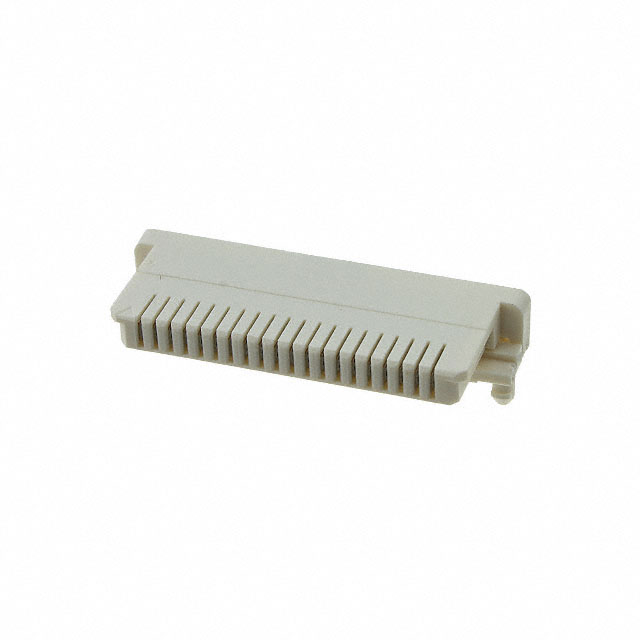

CONN RCPT 20POS R/A TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-917360-0 |
|---|---|
| Connector Type | Receptacle, Non-Gendered |
| Contact Finish | Tin |
| Contact Finish Thickness | 31.5 µin |
| Contact Finish Thickness | 0.8 µm |
| Height Above Board | 0.213 in |
| Height Above Board | 5.4 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
917360 Series
20 Position Connector Receptacle, Non-Gendered Through Hole, Right Angle Tin
