381L500K
ObsoleteHoneywell Sensing and Productivity Solutions
POT 500K OHM 1W PLASTIC LINEAR
381L500K
ObsoleteHoneywell Sensing and Productivity Solutions
POT 500K OHM 1W PLASTIC LINEAR
Description
General part information
381L500K

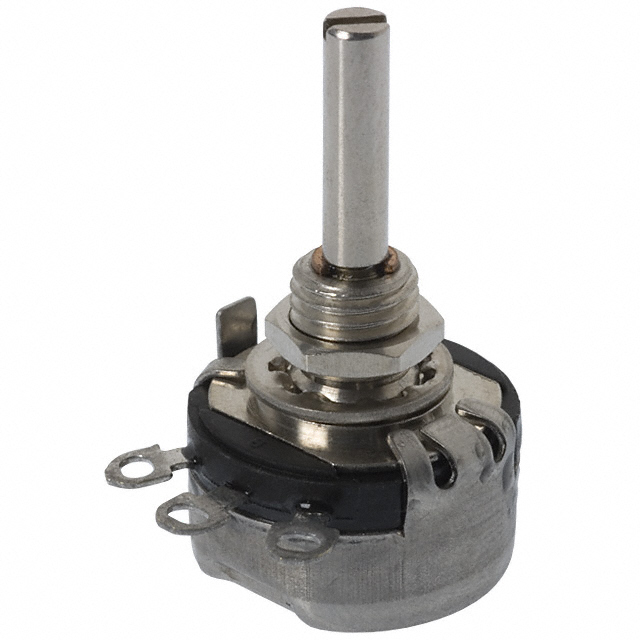

500k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 381L500K |
|---|---|
| Actuator Diameter | 3.175 mm |
| Actuator Length | 0.438 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 1/4-32 |
| Features | Long Life |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 1 W |
| Resistance | 500 kOhm |
| Resistive Material | Conductive Plastic |
| Rotation | 300 ° |
| Size - Body Diameter | 0.625 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
