712
ActiveHammond Manufacturing

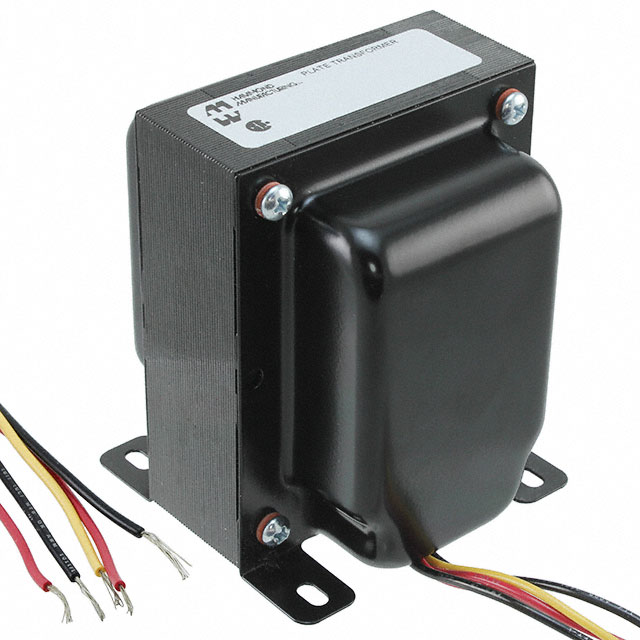

POWER TRANSFORMER 1700VRMS 293VA 5 TERMINAL WIRE LEAD FLANGE MOUNT
712
ActiveHammond Manufacturing
POWER TRANSFORMER 1700VRMS 293VA 5 TERMINAL WIRE LEAD FLANGE MOUNT
Description
General part information
712
POWER TRANSFORMER 1700VRMS 293VA 5 TERMINAL WIRE LEAD FLANGE MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 712 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 215 mA |
| Height - Seated (Max) | 114.3 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 130 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 95.25 mm |
| Size / Dimension Width | 117.6 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 850 V |
| Weight | 8.8 lbs |
