FMCA1873-50CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 1
FMCA1873-50CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 1
Description
General part information
FMCA1873-50CM

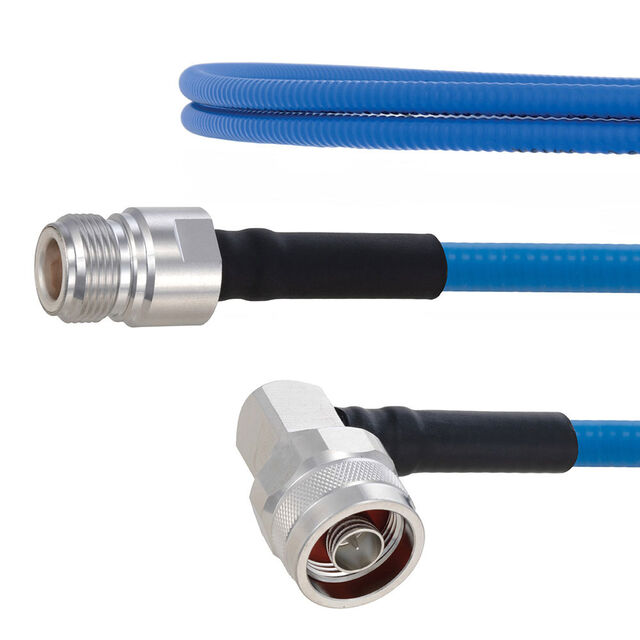

Cable Assembly Coaxial N-Type to N-Type SPP-250LLPL 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1873-50CM |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
