CLB.015.GLLG

Active

LEMO

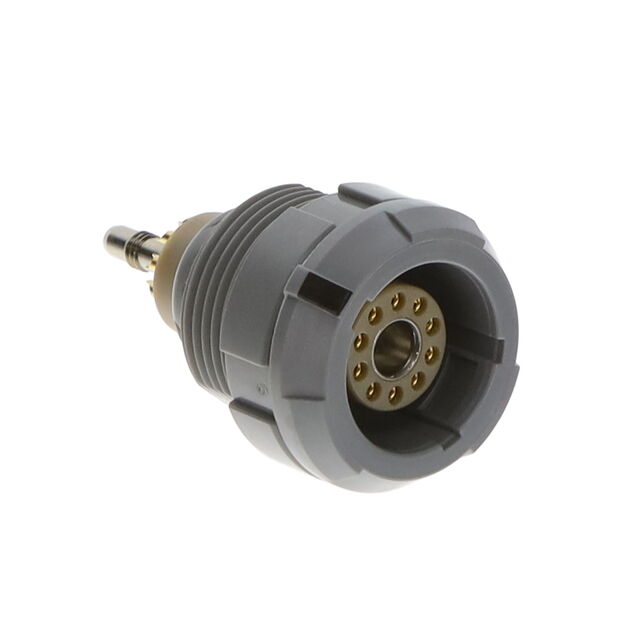

CONN RCPT FMALE 11P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 11P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CLB.015.GLLG

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	11
Number of Positions [custom]	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	15
Shielding	Unshielded

CONN RCPT FMALE 11P SOLDER CUP

Part	Shell Size - Insert	Shielding	Contact Finish - Mating	Orientation	Mounting Feature	Color	Current Rating (Amps)	Ingress Protection	Insert Material	Primary Material	Applications	Shell Material	Fastening Type	Number of Positions [custom]	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
LEMO CLB.015.GLLG	15	Unshielded	Gold	B	Bulkhead - Rear Side Nut	Gray	5 A	IP50	Polyetheretherketone (PEEK)	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polysulfone (PSU)	Detent Lock, Push-Pull	1	11	Receptacle, Female Sockets	150 °C	-50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (10 + 1 Fluidic) Position Circular Connector Receptacle, Female Sockets Solder Cup
