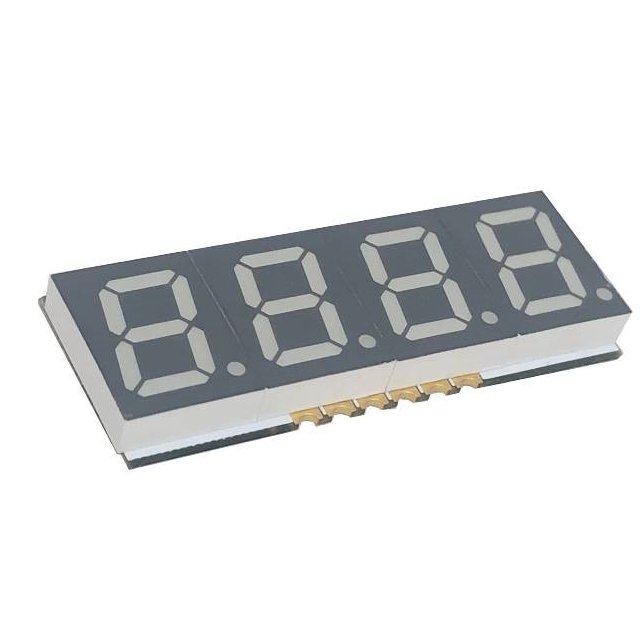

SMC394YG G/W

Active

American Opto Plus LED

DIS 28SEG 0.39Q UAD Y-GREEN 12DI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMC394YG G/W

Active

American Opto Plus LED

DIS 28SEG 0.39Q UAD Y-GREEN 12DI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMC394YG G/W	SMC394 Series

Color	Yellow-Green	Yellow-Green, Blue
Common Pin	Common Cathode	Common Cathode
Current - Test	20 mA	20 mA
Digit/Alpha Size	0.39 in	0.39 in
Digit/Alpha Size	10 mm	10 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	12 mcd	12 - 40 mcd
Number of Characters	4	4
Package / Case	12-SMD, No Lead	12-SMD, No Lead, 12-DIP
Power Dissipation (Max) [Max]	70 mW	70 - 120 mW
Size / Dimension [x]	0.591 in	0.591 in
Size / Dimension [x]	15 mm	15 mm
Size / Dimension [y]	1.543 in	1.543 in
Size / Dimension [y]	39.2 mm	39.2 mm
Size / Dimension [z]	0.15 "	0.15 "
Size / Dimension [z]	3.8 mm	3.8 mm
Voltage - Forward (Vf) (Typ)	2.1 V	2.1 - 3.2 V
Wavelength - Peak	573 nm	573 nm

SMC394 Series

DIS 28SEG 0.39Q UAD Y-GREEN 12DI

Part	Current - Test	Number of Characters	Display Type	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Power Dissipation (Max) [Max]	Common Pin	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
American Opto Plus LED SMC394YG G/W	20 mA	4	7-Segment	0.39 in	10 mm	12-SMD, No Lead	Yellow-Green	1.543 in	0.591 in	39.2 mm	15 mm	0.15 "	3.8 mm	70 mW	Common Cathode	12 mcd	2.1 V	573 nm
American Opto Plus LED SMC394LB G/W	20 mA	4	7-Segment	0.39 in	10 mm	12-DIP	Blue	1.543 in	0.591 in	39.2 mm	15 mm	0.15 "	3.8 mm	120 mW	Common Cathode	40 mcd	3.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 6.44
		10	$ 4.83
		100	$ 4.03
		500	$ 2.82
		750	$ 2.58

Description

General part information

SMC394 Series

Display Modules - LED Character and Numeric Yellow-Green 7-Segment 4 Character Common Cathode 2.1V 20mA 0.591" H x 1.543" W x 0.150" D (15.00mm x 39.20mm x 3.80mm) 12-SMD, No Lead

Documents

Technical documentation and resources
