9451DP 00910000
ActiveBelden Inc.
2 FS PR #22 FEP PLENUM PVC
9451DP 00910000
ActiveBelden Inc.
2 FS PR #22 FEP PLENUM PVC
Description
General part information
9451DP 00910000

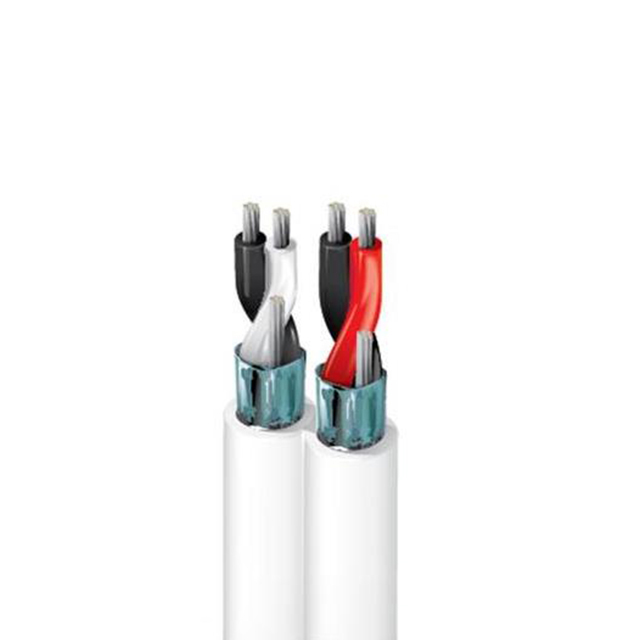

4 (2 Pair Twisted) Conductor Multi-Pair Cable White 22 AWG Foil 10000' (3048.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 9451DP 00910000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 30 |
| Jacket (Insulation) Diameter | 0.127 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | White |
| Length | 10000 ft |
| Number of Conductors | 4 |
| Number of Conductors - Pair | 2 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
