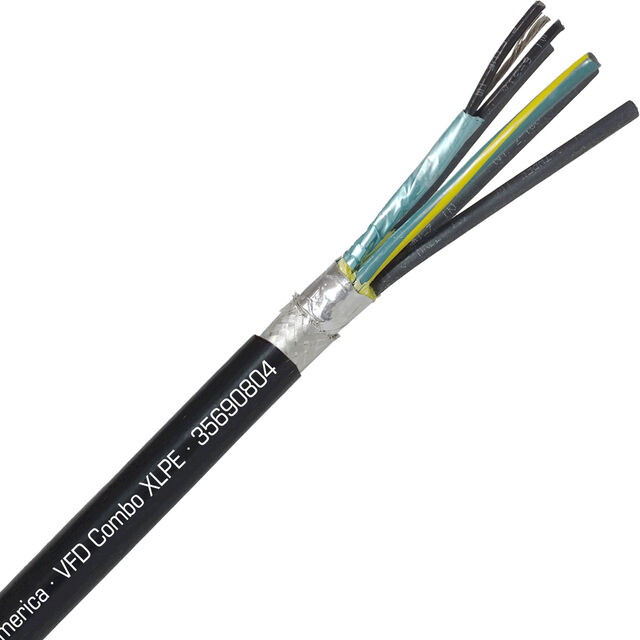

Specification	35690804

Cable Type	Conductor, Multi
Conductor Arrangement	4
Conductor Insulation	Polyethylene (XLPE), Irradiated
Conductor Material	Tinned, Copper
Conductor Strand	168/30, 41/30
Features	Direct Burial, UV Resistant, Oil Resistant, Flame Retardant
Jacket (Insulation) Diameter	0.96 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Copolymer
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	6
Number of Conductors - Pair	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Ratings	UL, TC-ER, Style
Shield Material	Copper, Tinned
Shield Type	Braid, Foil
Usage	Industrial, Servo Motor, Variable Frequency Drive (VFD), Motor Supply
Wire Gauge	8 AWG, 14 AWG
