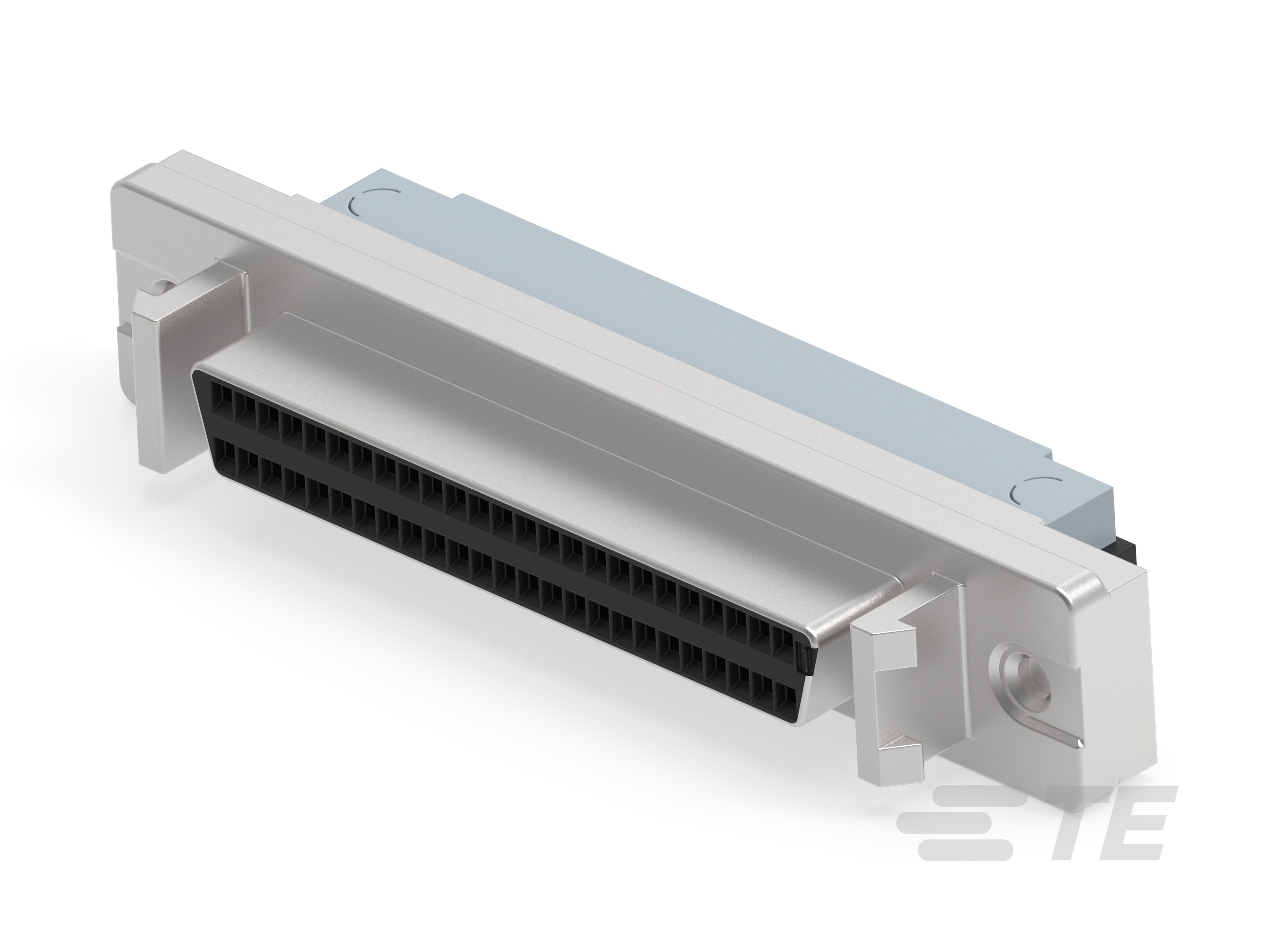

50 50SR PANEL MOUNT RCPT S/A-1-786862-5

1-786862-5

Active
TE Connectivity AMP Connectors

50 50SR PANEL MOUNT RCPT S/A ROHS COMPLIANT: NO

Find alt
50 50SR PANEL MOUNT RCPT S/A-1-786862-5

1-786862-5

Active
TE Connectivity AMP Connectors

50 50SR PANEL MOUNT RCPT S/A ROHS COMPLIANT: NO

Find alt

Description

General part information

AMPLIMITE 0.50 Series Series

D-Sub Standard Connectors 50 50SR VERT RCPT

Technical Specifications

Parameters and characteristics for this part

Specification1-786862-5
ColorBlack
Connector Layout Pitch0.05
Connector Layout Row to Row0.1
Connector StyleD-Type
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
Contact MaterialPhosphor Bronze
Contact TypeSignal
Current Rating1 A
Dielectric MaterialPolyester
FeaturesTerminating Cover, Feed Through
FinishNickel Plated
Flange FeatureLatchblocks, Housing/Shell
Flange Feature Maximum56
Flange Feature Minimum2
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount
Number of Positions50
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Shell MaterialSteel
TerminationIDC, Ribbon Cable
Voltage Rating30 V
