C301306-382NHF
ActiveITG Electronics, Inc.
3.8MH, 30%, 13.5MOHM, 12.5A RATE
C301306-382NHF
ActiveITG Electronics, Inc.
3.8MH, 30%, 13.5MOHM, 12.5A RATE
Description
General part information
C301306-382NHF

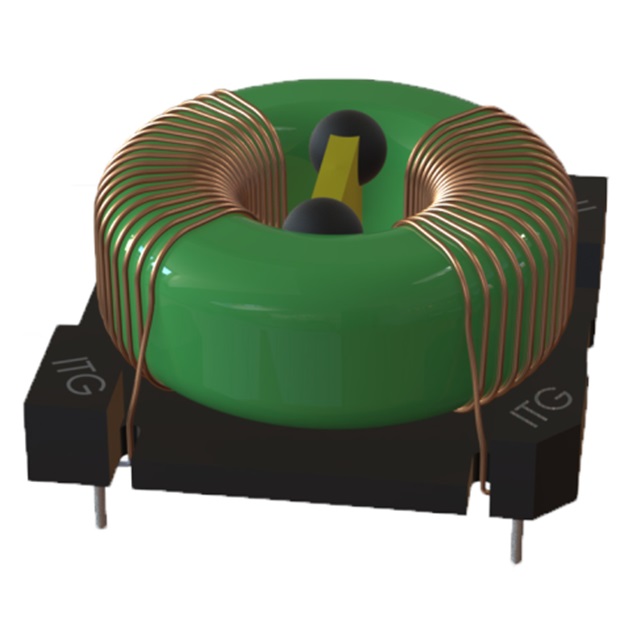

3.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 12.5A DCR 13.5mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | C301306-382NHF |
|---|---|
| Current Rating (Max) | 12.5 A |
| DC Resistance (DCR) (Max) | 13.5 mOhm |
| DC Resistance (DCR) (Typ) | 13.5 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.043 in |
| Inductance | 3.8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 1.713 in |
| Size / Dimension Width | 1.713 in |
| Voltage Rating - AC | 250 V |
