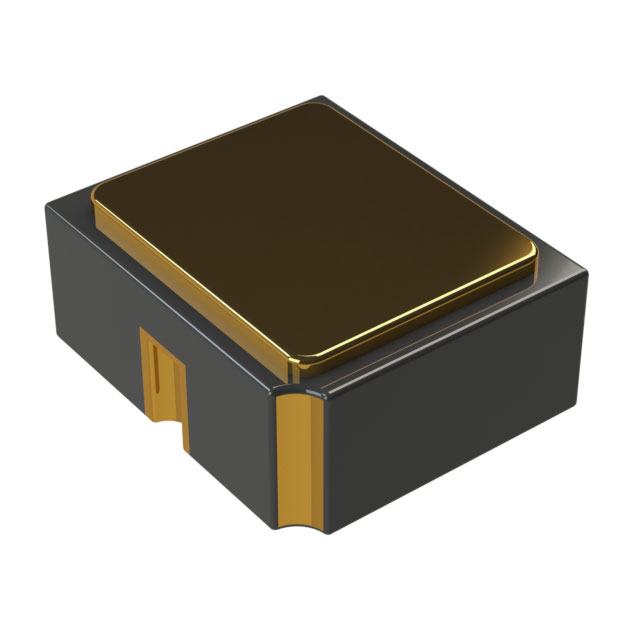

JANTX1N4148UB2R
ActiveDIODE GEN PURP 75V 200MA UB2R
JANTX1N4148UB2R
ActiveDIODE GEN PURP 75V 200MA UB2R
Description
General part information
1N4148 Series
This popular 1N4148UR-1 JEDEC registered switching/signal diode features internal metallurgical bonded construction for military grade products per MIL-PRF-19500/116. Previously listed as a CDLL4148 this small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-213AA package. It may be used in a variety of very high speed applications including switchers, detectors, transient OR'ing, logic arrays, blocking, as well as low-capacitance steering diodes, etc. Microchip also offers a variety of other switching/signal diodes.
Technical Specifications
Parameters and characteristics for this part
| Specification | JANTX1N4148UB2R |
|---|---|
| Capacitance | 4 pF |
| Current - Average Rectified (Io) | 200 mA |
| Current - Reverse Leakage | 500 nA |
| Grade | Military |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 200 °C |
| Operating Temperature - Junction (Min) | -65 °C |
| Package / Case | No Lead, 2-SMD |
| Package Name | UB2R |
| Qualification | MIL-PRF-19500, 116 |
| Reverse Recovery Time (trr) | 20 ns |
| Speed | Any Speed, Small Signal |
| Speed - Fast Recovery (Maximum) | 200 mA |
| Speed - Small Signal Current Max | 200 mA, 200 mA, 200 mA |
| Technology | Standard, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) | 1.2 V |
