QCCP501Q2R0B1GV001T

Active

JOHANSON TECHNOLOGY

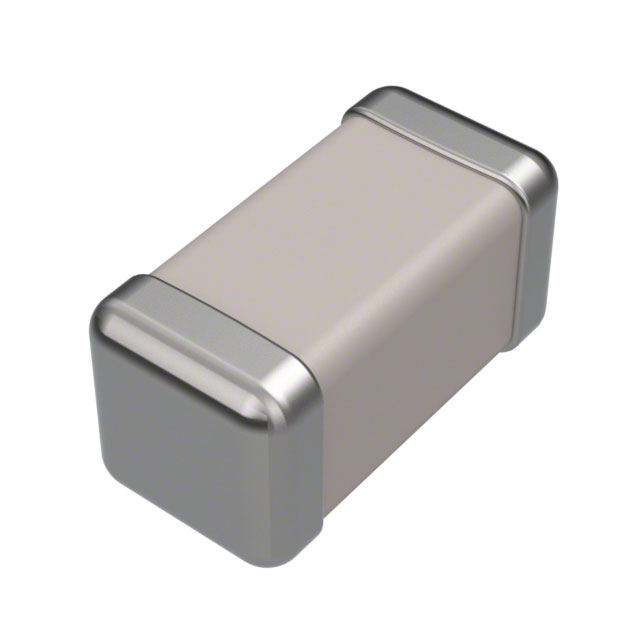

CAP CER 2PF 500V C0G/NP0 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QCCP501Q2R0B1GV001T

Active

JOHANSON TECHNOLOGY

CAP CER 2PF 500V C0G/NP0 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QCCP501Q2R0B1GV001T	QCCP501Q Series

Applications	High Frequency, Microwave, RF	High Frequency, Microwave, RF, Automotive
Capacitance	2 pF	0.1 - 82 pF
Features	Low Loss, High Q	Low Loss, High Q
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Ratings	-	AEC-Q200
Size / Dimension [x]	1.57 mm	1.57 mm
Size / Dimension [x]	0.062 in	0.062 in
Size / Dimension [y]	0.032 in	0.032 in
Size / Dimension [y]	0.81 mm	0.81 mm
Temperature Coefficient	NP0, C0G	NP0, C0G
Thickness (Max) [Max]	0.035 in	0.035 in
Thickness (Max) [Max]	0.89 mm	0.89 mm
Tolerance	0.1 pF	0.05 - 5 pF
Voltage - Rated	500 V	500 V

QCCP501Q Series

CAP CER 1.3PF 500V C0G/NP0 0603

Part	Voltage - Rated	Applications	Temperature Coefficient	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Package / Case	Mounting Type	Ratings
JOHANSON TECHNOLOGY QCCP501Q1R3B1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	0.1 pF	-55 °C	150 °C	1.3 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q0R1D1GV002T	500 V	Automotive, High Frequency, Microwave, RF	C0G, NP0	0.5 pF	-55 °C	150 °C	0.1 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount	AEC-Q200
JOHANSON TECHNOLOGY QCCP501Q680J1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	5 %	-55 °C	150 °C	68 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q1R2B1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	0.1 pF	-55 °C	150 °C	1.2 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q3R0B1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	0.1 pF	-55 °C	150 °C	3 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q820J1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	5 %	-55 °C	150 °C	82 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q1R7B1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	0.1 pF	-55 °C	150 °C	1.7 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q430J1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	5 %	-55 °C	150 °C	43 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q270J1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	5 %	-55 °C	150 °C	27 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount
JOHANSON TECHNOLOGY QCCP501Q150J1GV001T	500 V	High Frequency, Microwave, RF	C0G, NP0	5 %	-55 °C	150 °C	15 pF	0.035 in	0.89 mm	1.57 mm	0.062 in	0.032 in	0.81 mm	High Q, Low Loss	0603 (1608 Metric)	MLCC, Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.25
		10	$ 0.17
		50	$ 0.10
		100	$ 0.08
		500	$ 0.06
		1000	$ 0.05
	Tape & Reel (TR)	4000	$ 0.05
		8000	$ 0.04
		12000	$ 0.04
		28000	$ 0.04
		100000	$ 0.03
		200000	$ 0.03

Description

General part information

QCCP501Q Series

2 pF ±0.1pF 500V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
