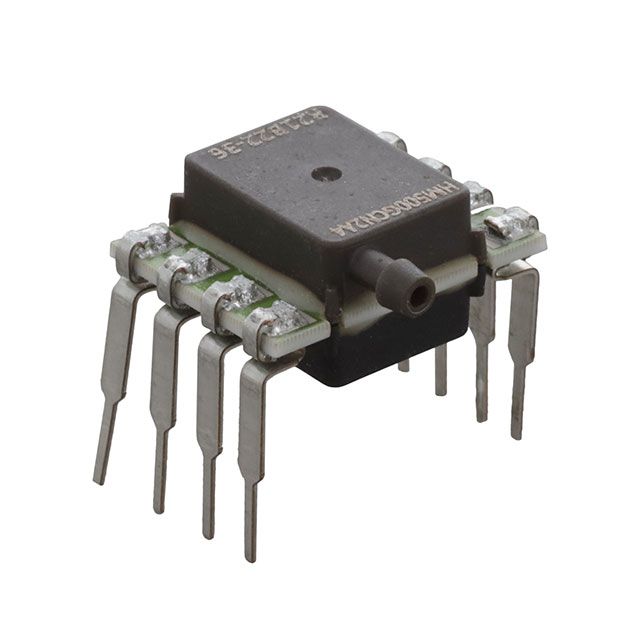

ELVH-M500G-HRND-C-N2A4
ActiveAmphenol All Sensors Corporation
SENSOR 7.25PSIG 0.06" 14BIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELVH-M500G-HRND-C-N2A4
ActiveAmphenol All Sensors Corporation
SENSOR 7.25PSIG 0.06" 14BIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELVH-M500G-HRND-C-N2A4 |
|---|---|
| Accuracy | 0.25 % |
| Features | Temperature Compensated |
| Maximum Pressure | 103 kPa |
| Maximum Pressure | 14.94 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 50 kPa |
| Operating Pressure | 7.25 PSI |
| Output | 14 b |
| Output Type | I2C |
| Package / Case | 13.3 mm, 0.524 " |
| Package / Case | 8-DIP |
| Port Size | 0.06 " |
| Port Size | Male |
| Port Size | 1.6 mm |
| Port Style | Barbed |
| Pressure Type | Gauge |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 44.26 | |
| 5 | $ 37.33 | |||
| 10 | $ 34.69 | |||
| 25 | $ 31.49 | |||
| 40 | $ 29.96 | |||
| 80 | $ 27.85 | |||
Description
General part information
ELVH-M500G-HRND-C-N2A4
Pressure Sensor 7.25PSI (50kPa) Gauge Male - 0.06" (1.6mm) Tube 14 b 8-DIP (0.524", 13.30mm), Side Port
