FMCA2748-12
ActiveFairview Microwave

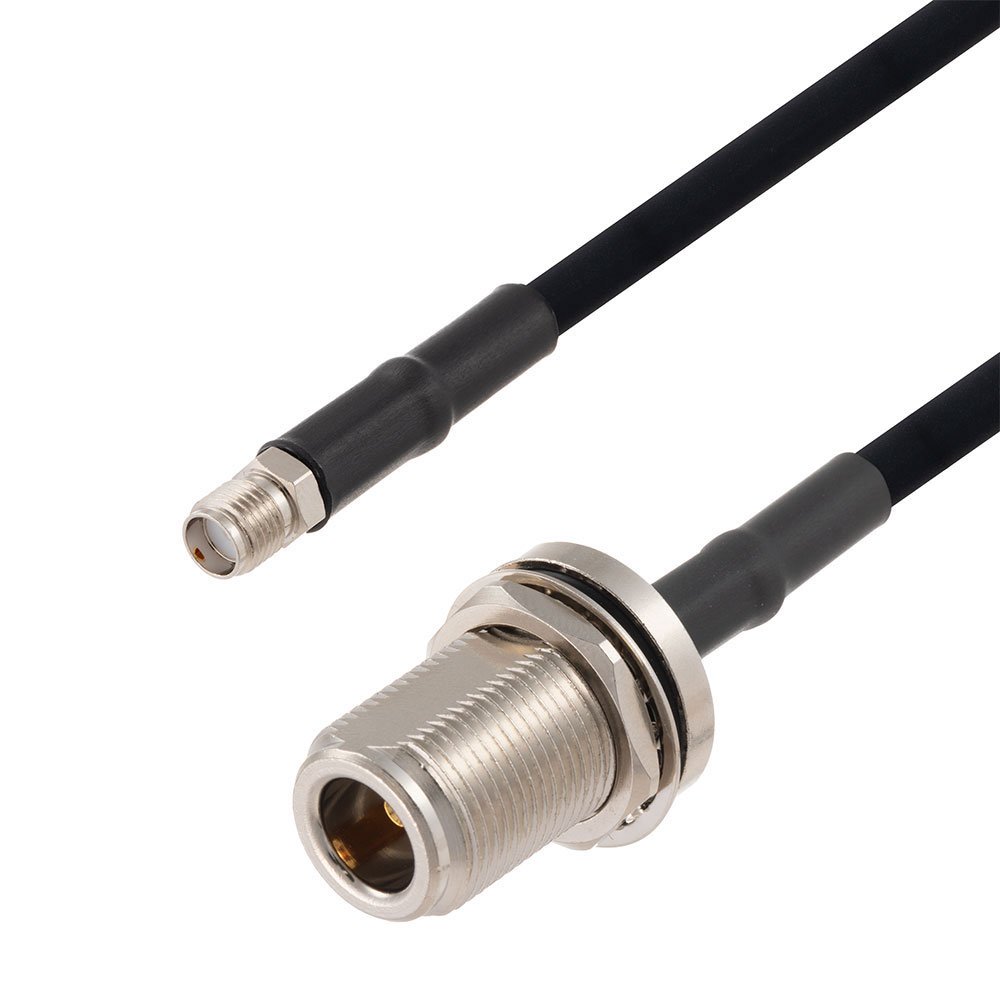

CBL ASSY SMAJACK-TYPE NJACK 12
FMCA2748-12
ActiveFairview Microwave
CBL ASSY SMAJACK-TYPE NJACK 12
Description
General part information
FMCA2748-12
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2748-12 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
