Technical Specifications
Parameters and characteristics commom to parts in this series

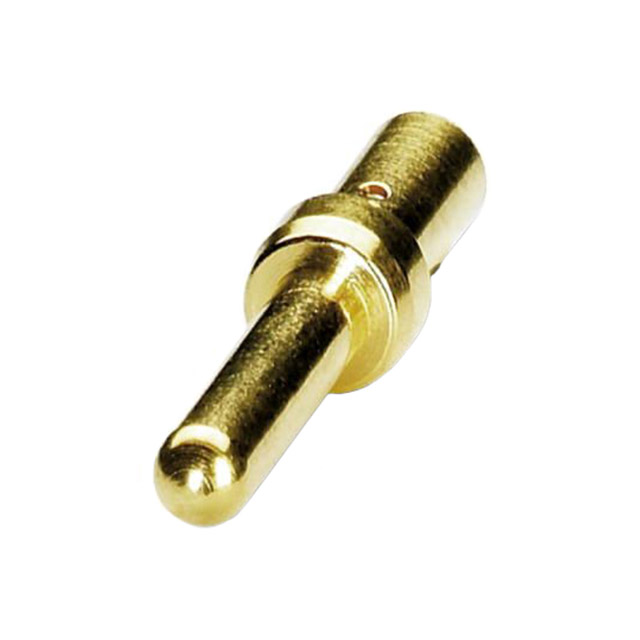

| Specification | 1596770 | RC Series |
|---|---|---|
| Accessory Type | - | Clamp Cage with Shield Adapter |
| Color | - | Black |
| Connector Type | - | Insert, Male Pins, Female Sockets, Insert Shell |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Copper Zinc |
| Contact Size | 1 mm | 1 - 1.5 mm |
| Contact Termination | Crimp | Crimp |
| Contact Type | Pin | Pin, Socket |
| Features | - | Insert Only, Requires Shell, Shielded |
| Housing Color | - | Silver |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insert Material | - | Polyamide (PA66), Nylon 6/6, Polybutylene Terephthalate (PBT) |
| Mounting Feature | - | Flange |
| Note | - | Contacts Not Included; Insert Not Included |
| Number of Positions | - | 3 |
| Number of Positions | - | 6 |
| Number of Positions | - | 12 |
| Operating Temperature | - | -20 C |
| Operating Temperature | - | 125 °C |
| Orientation | - | N |
| Shell Material | - | Gadolinium-Zinc |
| Shell Size - Insert | - | M23 |
| Shielding | - | Shielded |
| Termination | - | Crimp |
| Type | Signal, Machined | Signal, Machined |
| Wire Gauge or Range - mm˛ [Max] | 0.22 mm˛ | 0.22 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.08 mm˛ | 0.08 mm˛ |
| Wire Gauge or Range - mm² | - | 0.75 mm² |
| Wire Gauge or Range - mm² | - | 1 mm² |
RC Series
Circular Metric Connectors RC-06P1Y8A1L00
| Part | Contact Material | Insert Material | Orientation | Termination | Connector Type | Features | Contact Finish - Mating | Contact Termination | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Contact Type | Contact Finish | Contact Size | Type | Number of Positions [custom] | Number of Positions [custom] | Accessory Type | Color | Number of Positions | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Mounting Feature | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Shell Material | Ingress Protection | Shell Size - Insert | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1606997 | Copper Zinc | Polyamide (PA66), Nylon 6/6 | N | Crimp | Insert, Male Pins | Insert Only, Requires Shell | Gold | |||||||||||||||||||||||
Phoenix Contact 1596770 | Crimp | 0.08 mm˛ | 0.22 mm˛ | Pin | Gold | 1 mm | Machined, Signal | |||||||||||||||||||||||
Phoenix Contact 1603668 | Copper Zinc | Polybutylene Terephthalate (PBT) | N | Female Sockets, Insert | Insert Only, Requires Shell | Gold | 3 | 6 | ||||||||||||||||||||||
Phoenix Contact 1604465 | Shielded | Clamp Cage with Shield Adapter | Black | |||||||||||||||||||||||||||
Phoenix Contact 1598295 | Copper Zinc | Polyamide (PA66), Nylon 6/6 | N | Crimp | Insert, Male Pins | Insert Only, Requires Shell | Gold | 12 | ||||||||||||||||||||||
Phoenix Contact 1603805 | Crimp | Socket | Gold | 1.5 mm | Machined, Signal | 0.75 mm² | 1 mm² | |||||||||||||||||||||||
Phoenix Contact 1593021 | Insert Shell | Flange | Silver | -20 C | 125 °C | Shielded | Gadolinium-Zinc | IP67 - Dust Tight, Waterproof | M23 | Contacts Not Included; Insert Not Included | ||||||||||||||||||||
Phoenix Contact 1600231 | Copper Zinc | Polyamide (PA66), Nylon 6/6 | N | Crimp | Female Sockets, Insert | Insert Only, Requires Shell | Gold | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RC Series
Circular Metric Connectors RC-06P1Y8A1L00
