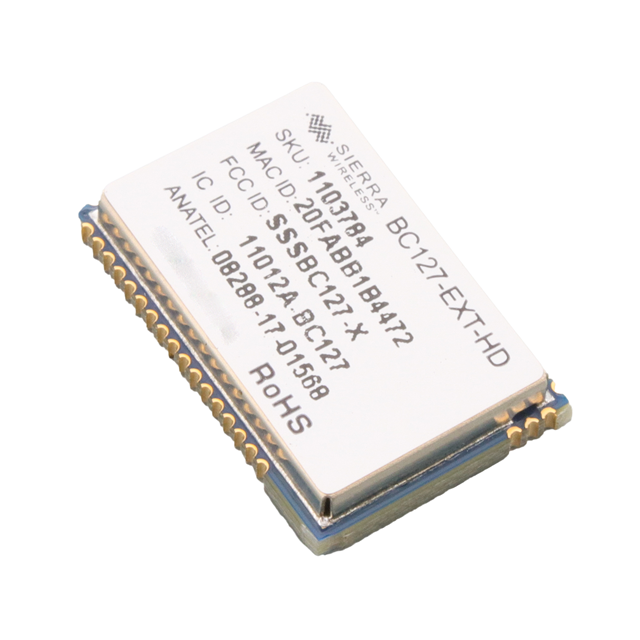

BC127-EXT-HD_1103784
ObsoleteSierra Wireless
RF TXRX MOD BT CAST SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC127-EXT-HD_1103784
ObsoleteSierra Wireless
RF TXRX MOD BT CAST SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BC127-EXT-HD_1103784 | BC127 Series |
|---|---|---|
| Antenna Type | Antenna Not Included, Castellation | Antenna Not Included, Castellation, Integrated, Chip |
| Current - Receiving | 15 mA | 15 mA |
| Current - Transmitting | 15 mA | 15 mA |
| Data Rate | 3 Mbps | 3 Mbps |
| For Use With/Related Products | - | BC127, BC127-HD |
| Frequency | - | 2.4 GHz |
| Frequency [Max] | 2.48 GHz | 2.48 GHz |
| Frequency [Min] | 2.4 GHz | 2.4 GHz |
| Memory Size | - | 16 MB |
| Modulation | QPSK, GFSK, 8PSK | QPSK, GFSK, 8PSK, DQPSK, DPSK |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Module | Module |
| Power - Output | 10 dBm | 10 dBm |
| Protocol | Bluetooth v4.2 | Bluetooth v4.2, Bluetooth v4.0 Dual Mode |
| RF Family/Standard | Bluetooth | Bluetooth |
| Sensitivity | -88 dBm | -88 dBm |
| Supplied Contents | - | Cable(s), Board(s) |
| Type | - | Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
| Voltage - Supply [Max] | 4.7 V | 4.7 V |
| Voltage - Supply [Min] | 3.3 V | 3.3 V |
BC127 Series
RF TXRX MOD BT CAST SMD
| Part | Modulation | Power - Output | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Sensitivity | Current - Receiving | Package / Case | Antenna Type | Data Rate | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | RF Family/Standard | Frequency [Min] | Frequency [Max] | Current - Transmitting | Type | For Use With/Related Products | Frequency | Supplied Contents | Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sierra Wireless BC127-EXT-HD_1103784 | 8PSK, GFSK, QPSK | 10 dBm | Bluetooth v4.2 | 85 °C | -40 °C | -88 dBm | 15 mA | Module | Antenna Not Included, Castellation | 3 Mbps | Surface Mount | 4.7 V | 3.3 V | Bluetooth | 2.4 GHz | 2.48 GHz | 15 mA | |||||
Sierra Wireless BC127-HD_1103709 | 8PSK, GFSK, QPSK | 10 dBm | Bluetooth v4.2 | 85 °C | -40 °C | -88 dBm | 15 mA | Module | Integrated, Chip | 3 Mbps | Surface Mount | 4.7 V | 3.3 V | Bluetooth | 2.4 GHz | 2.48 GHz | 15 mA | |||||
Sierra Wireless BC127-DISKIT001_6001098 | Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE) | BC127 | 2.4 GHz | Board(s), Cable(s) | ||||||||||||||||||
Sierra Wireless BC127-1103383 | DPSK, DQPSK, GFSK | 10 dBm | Bluetooth v4.0 Dual Mode | 85 °C | -40 °C | -88 dBm | 15 mA | Module | Integrated, Chip | 3 Mbps | Surface Mount | 4.7 V | 3.3 V | Bluetooth | 15 mA | 2.4 GHz | 16 MB | |||||
Sierra Wireless BC127-APTX_1103708 | 8PSK, GFSK, QPSK | 10 dBm | Bluetooth v4.2 | 85 °C | -40 °C | -88 dBm | 15 mA | Module | Integrated, Chip | 3 Mbps | Surface Mount | 4.7 V | 3.3 V | Bluetooth | 2.4 GHz | 2.48 GHz | 15 mA | |||||
Sierra Wireless BC127-HD DIS KIT_6001115 | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | BC127-HD | 2.4 GHz | Board(s) | ||||||||||||||||||
Sierra Wireless BC127-EXT-APTX_1103783 | 8PSK, GFSK, QPSK | 10 dBm | Bluetooth v4.2 | 85 °C | -40 °C | -88 dBm | 15 mA | Module | Antenna Not Included, Castellation | 3 Mbps | Surface Mount | 4.7 V | 3.3 V | Bluetooth | 2.4 GHz | 2.48 GHz | 15 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BC127 Series
Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.48GHz Antenna Not Included, Castellation Surface Mount
