CBG-SARF3OGTX9-SARMGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY RPSMA JACK TO PLUG 10"
CBG-SARF3OGTX9-SARMGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY RPSMA JACK TO PLUG 10"
Description
General part information
CBG-SARF3OGTX9-SARMGT-10IN

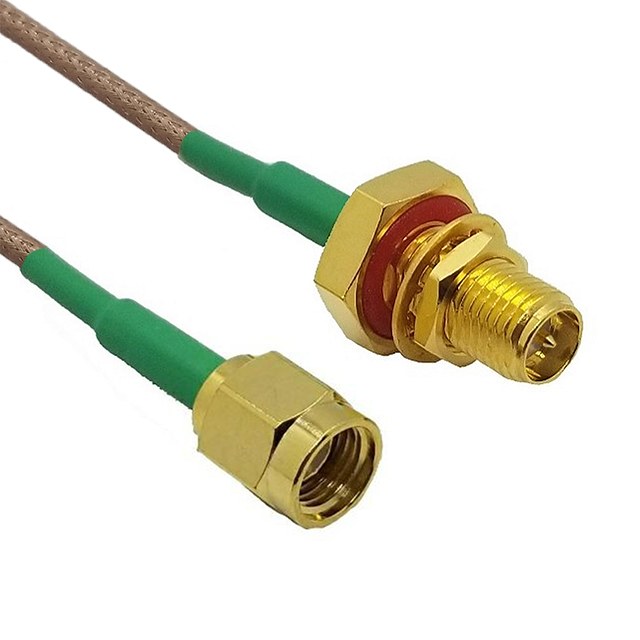

Cable Assembly Coaxial RP-SMA to RP-SMA RG-178 10.000" (254.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-SARF3OGTX9-SARMGT-10IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | RP-SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 178, RG |
| Color | Copper |
| Features | Shielded |
| Frequency - Max | 3 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 10 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA |
