PE-53829SNL
ActivePulse Electronics
FIXED IND 112UH 1.26A 300MOHM SM
PE-53829SNL
ActivePulse Electronics
FIXED IND 112UH 1.26A 300MOHM SM
Description
General part information
PE-53829SNL

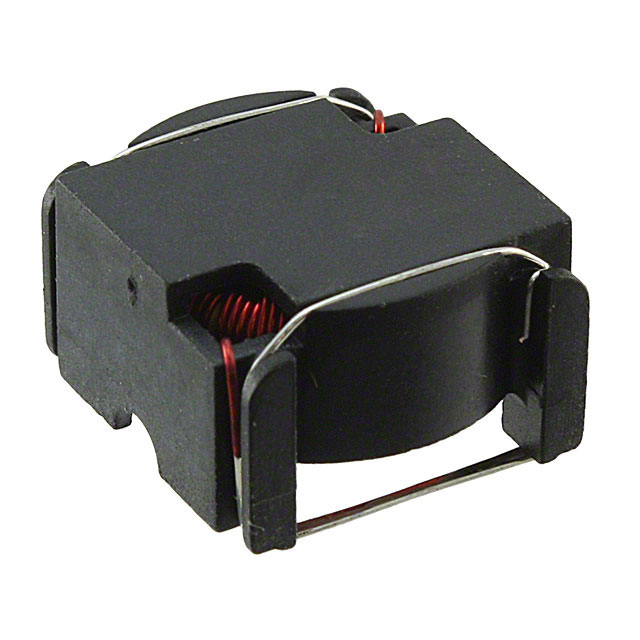

112 µH Shielded Toroidal Inductor 1.26 A 300mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53829SNL |
|---|---|
| Current Rating | 1.26 A |
| DC Resistance (DCR) | 300 mOhm |
| Height - Seated (Max) | 0.39 in |
| Inductance | 112 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.62 in |
| Size / Dimension Width | 0.6 in |
| Tolerance | 20 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
