1896/8C SL002
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 8 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M
Deep-Dive with AI
Search across all available documentation for this part.
1896/8C SL002
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 8 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1896/8C SL002 | 1896/8C Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 28 | 28 |
| Conductor Strand [custom] | 7 | 7 |
| Jacket (Insulation) Diameter [diameter] | 0.273 in | 0.273 in |
| Jacket (Insulation) Diameter [diameter] | 6.93 mm | 6.93 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm | 0.508 mm |
| Jacket Color | Slate | Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 500 ' | 100 - 500 ft |
| Length [x] | 152.4 m | 30.5 - 152.4 m |
| Number of Conductors | 8 | 8 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 20 AWG | 20 AWG |
1896/8C Series
CABLE 8COND 20AWG SLATE 100'
| Part | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Wire Gauge | Conductor Insulation | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1896/8C SL005 | Communication, Control | 0.273 in | 6.93 mm | -20 C | 80 C | Multi-Conductor | 28 | 7 | 30.5 m | 100 ft | 0.02 in | 0.508 mm | Slate | 20 AWG | Poly-Vinyl Chloride (PVC) | 8 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 300 V | ||
ALPHA WIRE 1896/8C SL002 | Communication, Control | 0.273 in | 6.93 mm | -20 C | 80 C | Multi-Conductor | 28 | 7 | 152.4 m | 500 ' | 0.02 in | 0.508 mm | Slate | 20 AWG | Poly-Vinyl Chloride (PVC) | 8 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 300 V | ||
ALPHA WIRE 1896/8C SL001 | Communication, Control | 0.273 in | 6.93 mm | -20 C | 80 C | Multi-Conductor | 28 | 7 | 0.02 in | 0.508 mm | Slate | 20 AWG | Poly-Vinyl Chloride (PVC) | 8 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 300 V | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1896/8C Series

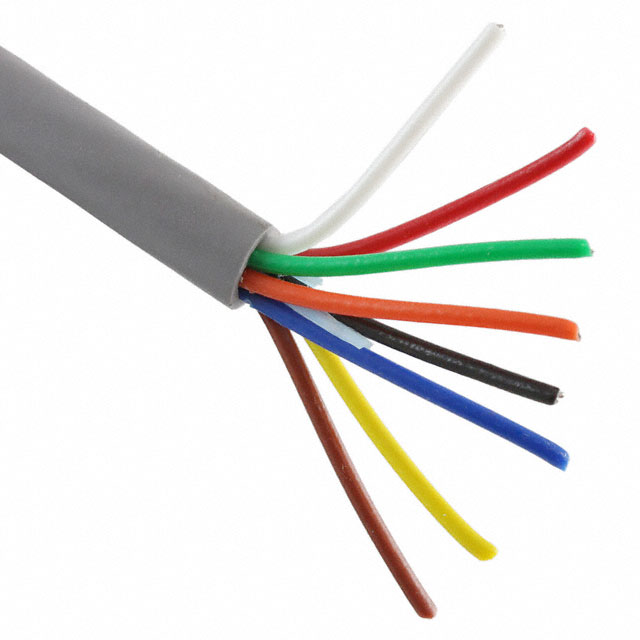

The 1896/8C SL002 is a 8-core Unshielded Cable with tinned copper conductor, PVC insulator and a slate PVC jacket.
