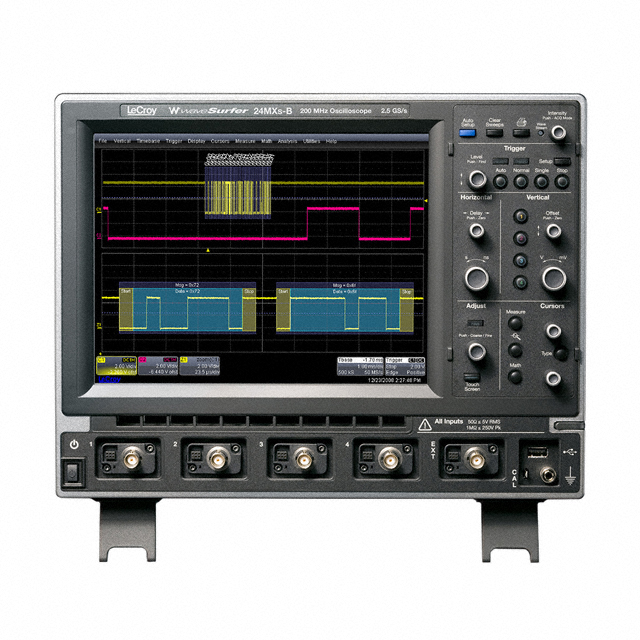

WAVESURFER 24MXS-B
ObsoleteTeledyne LeCroy
DGTL O-SCOPE 200MHZ 2.5GS/S 4CH
WAVESURFER 24MXS-B
ObsoleteTeledyne LeCroy
DGTL O-SCOPE 200MHZ 2.5GS/S 4CH
Description
General part information
WAVESURFER 24MXS-B
200 MHz Bench, Digital Oscilloscopes Ethernet, GPIB, RS232, USB Interface LCD - Color (Touch) Display 4 Channel 400V Record, Save, Trend
Technical Specifications
Parameters and characteristics for this part
| Specification | WAVESURFER 24MXS-B |
|---|---|
| Analog Channels | 4 |
| Bandwidth | 200 MHz |
| Channel Types | Analog |
| Channels (Count) | 4 |
| Display Type | LCD - Color (Touch) |
| Function | Save, Record, Trend |
| Includes | USB Cable, Software, Manual |
| Input Impedance (Capacitance) | 16 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB, RS232, GPIB, Ethernet |
| Memory Size | 64 kpts |
| Probe Attenuation | 10 ratio |
| Probe Count | 4 |
| Probe Type | Passive |
| Rise Time (Typ) | 1.75 ns |
| Sampling Rate (Per Second) | 2.5 GHz |
| Type | Digital, Bench |
| Voltage - Input (Max) | 400 VDC |
| Voltage - Supply (Maximum) | 264 VAC |
| Voltage - Supply (Minimum) | 90 VAC |
