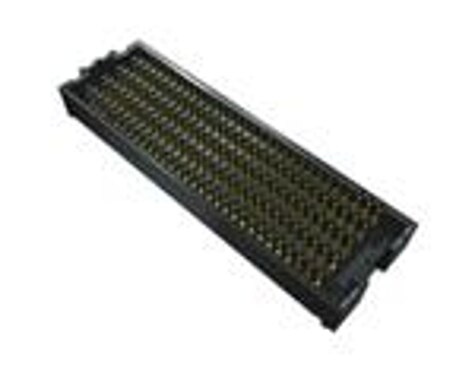

Specification	SEAF-40-07.5-S-10-2-A-K-TR

Connector Type	High Density Array, FEMALE
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide, Pick and Place
Height Above Board	0.297 in
Mated Stacking Height Options	11mm, 20.5mm, 18.5mm, 14mm, 16.5mm, 10.5mm, 14.5mm, 9.5mm
Mounting Type	Surface Mount
Number of Positions	400
Number of Rows	10
Pitch	0.05 in

SEAF-RA Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Part	Number of Rows	Mated Stacking Height Options	Features	Contact Finish	Mounting Type	Pitch	Connector Type	Height Above Board	Contact Finish Thickness	Number of Positions
Samtec Inc. SEAF-30-06.5-L-10-1-A-K-TR	10	10mm 13.5mm 13mm 15.5mm 17.5mm 19.5mm 8.5mm 9.5mm	Board Guide Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.258 in	10 Ąin	300
Samtec Inc. SEAF-40-06.5-S-04-2-A-K-TR	4	10mm 13.5mm 13mm 15.5mm 17.5mm 19.5mm 8.5mm 9.5mm	Board Guide Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.258 in	30 µin	160
Samtec Inc. SEAF-40-05.0-S-06-2-A-LP-K-TR	6	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm	Board Guide Latches Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.199 in	30 µin	240
Samtec Inc. SEAF-40-05.0-S-10-2-A-LP-K-TR	10	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm	Board Guide Latches Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.199 in	30 µin	400
Samtec Inc. SEAF-50-05.0-L-04-1-A-LP-K-TR	4	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm	Board Guide Latches Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.199 in	10 Ąin	200
Samtec Inc. SEAF-50-05.0-S-10-1-A-LP-K-TR	10	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm	Board Guide Latches Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.199 in	30 µin	500
Samtec Inc. SEAF-40-06.0-L-04-1-A-K-TR	4	12.5mm 13mm 15mm 17mm 19mm 8mm 9.5mm 9mm	Board Guide Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.238 in	10 Ąin	160
Samtec Inc. SEAF-20-01-S-04-1-RA-GP-K-TR	4		Board Guide Mating Flange Pick and Place	Gold	Right Angle Surface Mount	0.05 in	FEMALE High Density Array	0.311 in	30 µin	80
Samtec Inc. SEAF-30-05.0-L-10-1-A-LP-K-TR	10	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm	Board Guide Latches Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.199 in	10 Ąin	300
Samtec Inc. SEAF-50-06.5-L-08-1-A-K-TR	8	10mm 13.5mm 13mm 15.5mm 17.5mm 19.5mm 8.5mm 9.5mm	Board Guide Pick and Place	Gold	Surface Mount	0.05 in	FEMALE High Density Array	0.258 in	10 Ąin	400
