638-M15-330-BT6

Active

EDAC Inc.

MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-M15-330-BT6

Active

EDAC Inc.

MACHINED D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-M15-330-BT6

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

638-M15 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Flange Feature	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Contact Finish	Features	Shell Material, Finish	Connector Type	Contact Finish Thickness	Contact Type	Number of Positions	Mounting Type	Color	Current Rating (Amps)	Dielectric Material	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 638-M15-232-BN3	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40 Board Side	3	DE E	1	High Density	D-Sub High Density	Gold	Shielded	Nickel Plated Steel	Receptacle Female Sockets	Flash	Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T
EDAC Inc. 638-M15-330-BN6	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40	3	DE E	1	High Density	D-Sub High Density	Gold	Board Lock Shielded	Nickel Plated Steel	Receptacle Female Sockets		Signal	15	Through Hole	Black	5 A	Polyamide (PA9T) Nylon 9T	Solder	15 µin	0.38 µm
EDAC Inc. 638-M15-232-BN5	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40 Board Side	3	DE E	1	High Density	D-Sub High Density	Gold	Board Lock Shielded	Nickel Plated Steel	Receptacle Female Sockets	Flash	Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T
EDAC Inc. 638-M15-330-BT6	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40	3	DE E	1	High Density	D-Sub High Density	Gold	Board Lock Shielded		Receptacle Female Sockets		Signal	15	Through Hole	Black	5 A	Polyamide (PA9T) Nylon 9T	Solder	15 µin	0.38 µm
EDAC Inc. 638-M15-232-BT2	-55 °C	125 °C	UL94 V-0	Copper Alloy	Housing/Shell (4-40)	3	DE E	1	High Density	D-Sub High Density	Gold	Shielded		Receptacle Female Sockets	Flash	Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T
EDAC Inc. 638-M15-632-BN3	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40 Board Side	3	DE E	1	High Density	D-Sub High Density	Gold	Shielded	Nickel Plated Steel	Receptacle Female Sockets		Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T		30 Áin	0.76 Ám
EDAC Inc. 638-M15-332-BT2	-55 °C	125 °C	UL94 V-0	Copper Alloy	Housing/Shell (4-40)	3	DE E	1	High Density	D-Sub High Density	Gold	Shielded		Receptacle Female Sockets		Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T		15 µin	0.38 µm
EDAC Inc. 638-M15-632-BN4	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40	3	DE E	1	High Density	D-Sub High Density	Gold	Shielded	Nickel Plated Steel	Receptacle Female Sockets		Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T		30 Áin	0.76 Ám
EDAC Inc. 638-M15-330-BN5	-55 °C	125 °C	UL94 V-0	Copper Alloy	4-40 Board Side	3	DE E	1	High Density	D-Sub High Density	Gold	Board Lock Shielded	Nickel Plated Steel	Receptacle Female Sockets		Signal	15	Through Hole	Black	5 A	Polyamide (PA9T) Nylon 9T	Solder	15 µin	0.38 µm
EDAC Inc. 638-M15-232-BN2	-55 °C	125 °C	UL94 V-0	Copper Alloy	Housing/Shell (4-40)	3	DE E	1	High Density	D-Sub High Density	Gold	Shielded	Nickel Plated Steel	Receptacle Female Sockets	Flash	Signal	15	Free Hanging (In-Line)	Black	5 A	Polyamide (PA9T) Nylon 9T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 6.50
Newark	Each	250	$ 7.32
		500	$ 7.05

Description

General part information

638-M15 Series

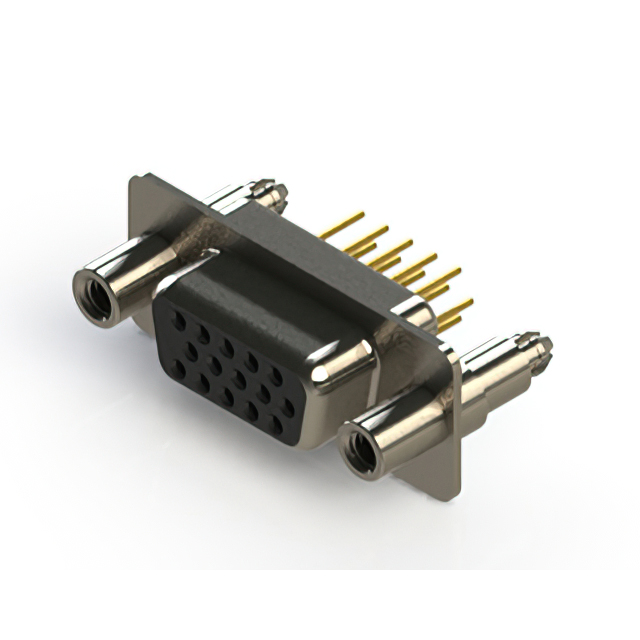

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
