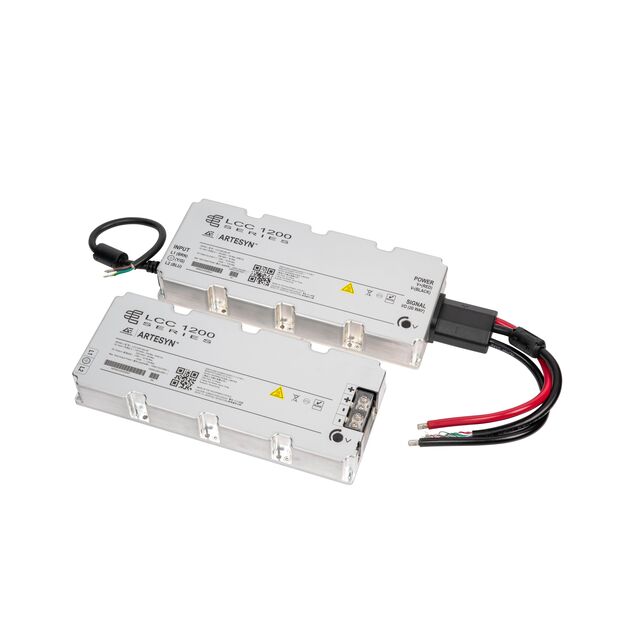

LCC1200-28U-4P
ActiveARTESYN / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 28V 42.9A 1200W 5-PIN BULK
LCC1200-28U-4P
ActiveARTESYN / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 28V 42.9A 1200W 5-PIN BULK
Description
General part information
LCC1200-28U-4P
Enclosed AC DC Converters 1 Output 28V 90 ~ 264 VAC, 127 ~ 374 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LCC1200-28U-4P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CCC, CE, UKCA |
| Current - Output 1 | 42.9 A |
| Efficiency | 93.5 % |
| Features | PMBus™, Adjustable Output, DC Input Capable, Universal Input, PFC, Remote Sense, Remote On/Off, Baseplate, Standby Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 1200 W |
| Size / Dimension Height | 1.57 in |
| Size / Dimension Length | 10.98 in |
| Size / Dimension Width | 4.53 in |
| Standard Number | 62368-1, 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 374 VDC |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 28 V |
