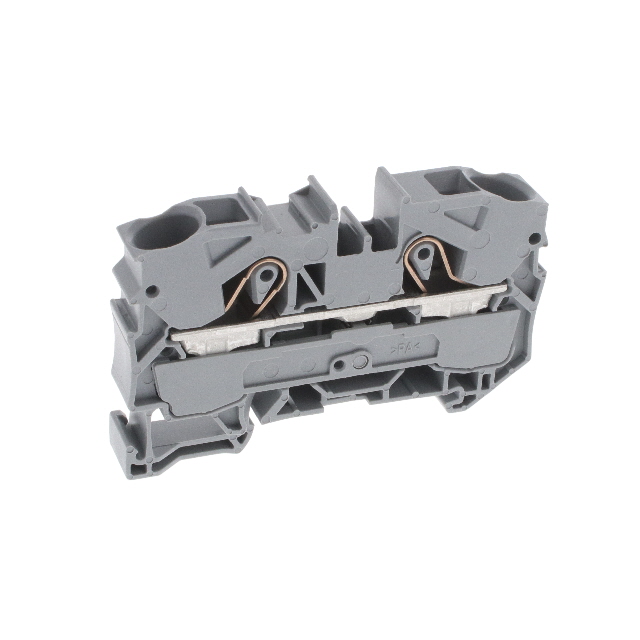

2010-1201

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², CLAMP, 57 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², CLAMP, 57 A

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², CLAMP, 57 A

Part	Type	Number of Levels	Number of Positions	Material - Insulation	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Voltage - IEC	Voltage - UL	Current - IEC	Current - UL
WAGO Corporation 2010-1207	Ground, Earth	1	2	Polyamide (PA66), Nylon 6/6	16 mm²	4 mm²	Green, Yellow	17 mm	19 mm	10 mm	14 AWG	6 AWG	Push In, Spring
WAGO Corporation 2010-1201	Feed Through	1	2	Polyamide (PA66), Nylon 6/6	16 mm²	4 mm²	Gray	17 mm	19 mm	10 mm	14 AWG	6 AWG	Push In, Spring	800 V	600 V	76 A	65 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Gray 6-14 AWG
