VLD2AN0B-00000-000

Active

Carling Technologies

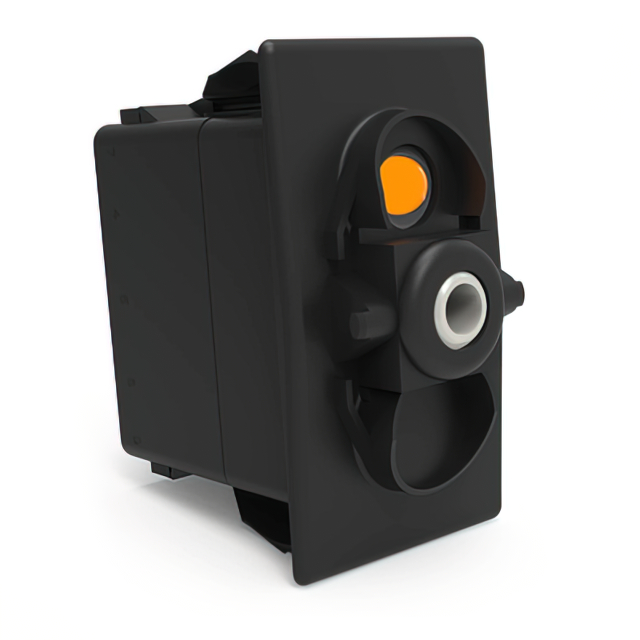

SWITCH ROCKER DPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VLD2AN0B-00000-000	VLD2AN0B Series

Actuator Marking	Varies by Cap	No Marking, Varies by Cap
Actuator Type	Actuator Arm, Cap Required - Illuminated	Convex (Reverse V) - Illuminated, Actuator Arm, Cap Required - Illuminated
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	Amber, LED	Amber, LED
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER DPDT 20A 12V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Illumination Type, Color	Illumination Voltage (Nominal)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - DC	Actuator Type	Termination Style	Mechanical Life	Circuit	Actuator Marking	Switch Function	Electrical Life	Color - Actuator/Cap	Mounting Type
Carling Technologies VLD2AN0B-A9C00-000	21.08 mm	36.83 mm	CSA, UL, VDE	Amber, LED	12 VDC	20 A	85 °C	-40 °C	IP66/IP68	12 V	Convex (Reverse V) - Illuminated	Quick Connect - 0.250" (6.3mm)	100000 Cycles	DPDT	No Marking	Mom-Off-Mom	100000 Cycles	Black	Panel Mount, Snap-In
Carling Technologies VLD2AN0B-00000-000	21.08 mm	36.83 mm	CSA, UL, VDE	Amber, LED	12 VDC	20 A	85 °C	-40 °C	IP66/IP68	12 V	Actuator Arm, Cap Required - Illuminated	Quick Connect - 0.250" (6.3mm)	100000 Cycles	DPDT	Varies by Cap	Mom-Off-Mom	100000 Cycles		Panel Mount, Snap-In
